Whyte

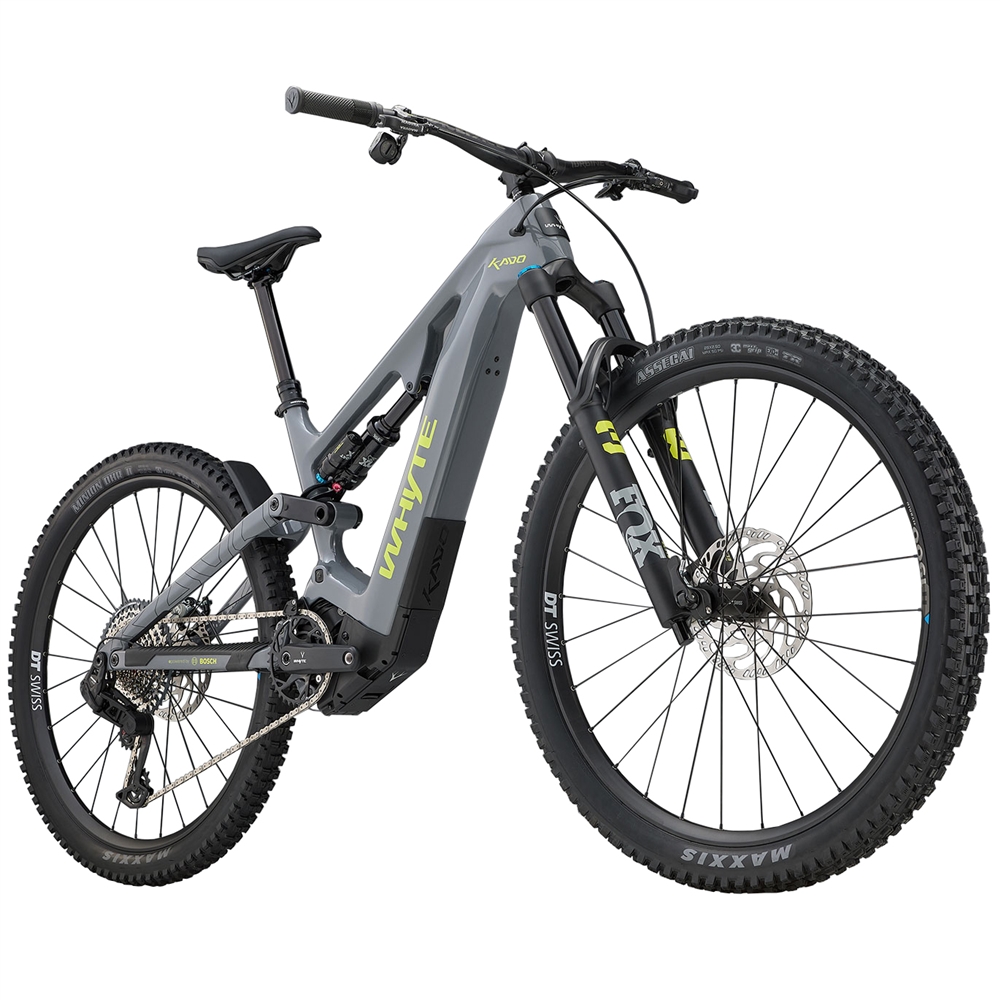

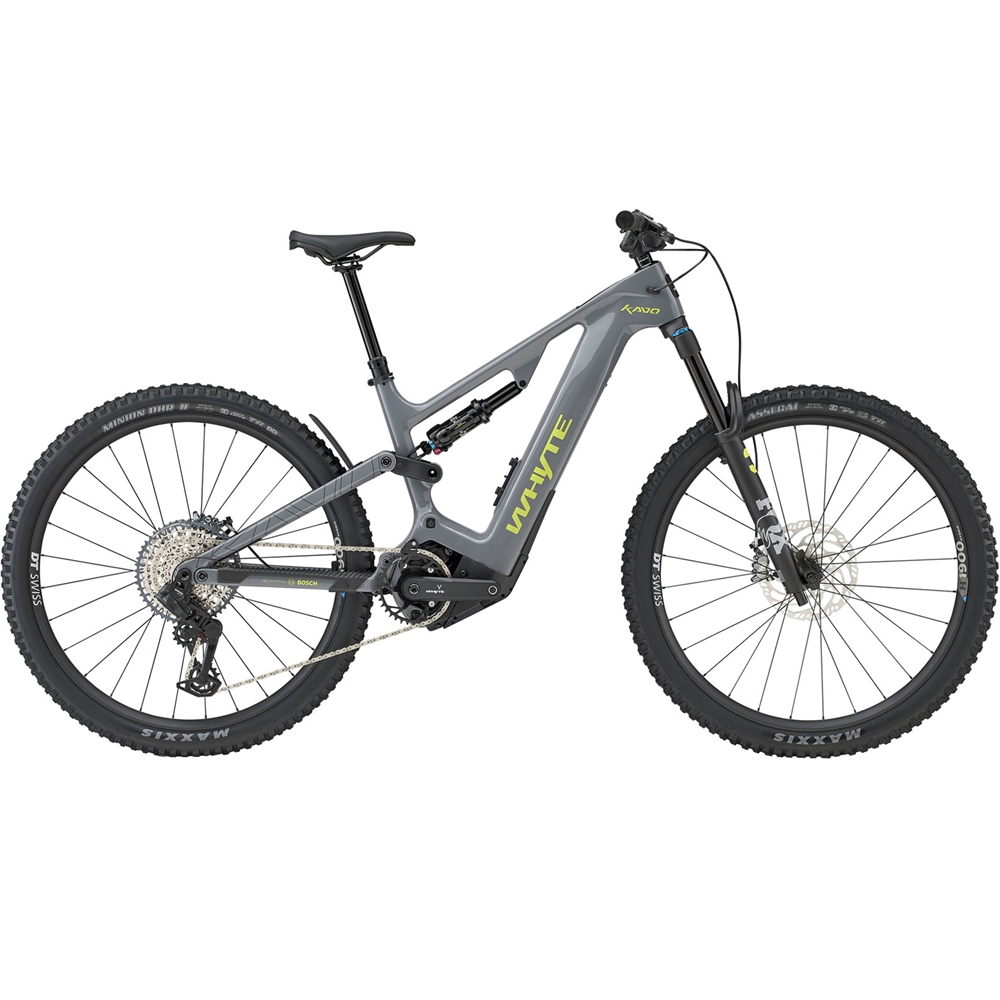

Kado RSX Electric Full Suspension Mountain Bike - Ash Grey (2026)

The capability to do great things

Go anywhere and do everything with our most capable eMTB ever.
Kado RSX's carbon fibre frameset, meticulously custom-tuned suspension, award-winning Total Geometry handling and low centre of gravity design aren't just for show: they deliver a highly capable and confidence-inspiring ride so you can tackle everything with total confidence. We've also carefully combined the finest trail-proven parts with Bosch's latest, powerfully refined and reliable CX motor, display and battery technologies. All to give you the power, control and range to take you - and your riding - further than ever before.

Kado RSX. Master any trail.

Features:

• 160mm front + 150mm rear of custom-tuned suspension travel; equipped with Fox's latest 2027 Float 38 Performance Elite fork.
• Uni-directional full carbon fibre frame with geometry adjustment is light and reassuringly strong.
• Bosch's fifth generation Performance Line CX full-torque full-power motor with E-MTB+ mode + 100Nm torque + 750W peak power.
• Bosch Kiox 400-C full-colour 2.0in top-tube display delivers a wealth of information at your fingertips.
• 800Wh easily removeable, slide-in internal battery so you can ride further.
• 29in trail-smoothing wheels front and rear + MX ready.
• Optimised low centre of gravity gives you exceptional, confidence-inspiring handling.
• Charge time (800Wh): 50% in 2.3hrs from empty, and to 100% in 6.9hrs with 4A Charger.

Specification:

FRAME: Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
FORK: Fox Float 38 Performance Elite, 160mm travel, 44mm offset with Grip X2 damper custom tuned for Whyte, tapered steerer, 110mm x 15mm Boost, E-thru axle

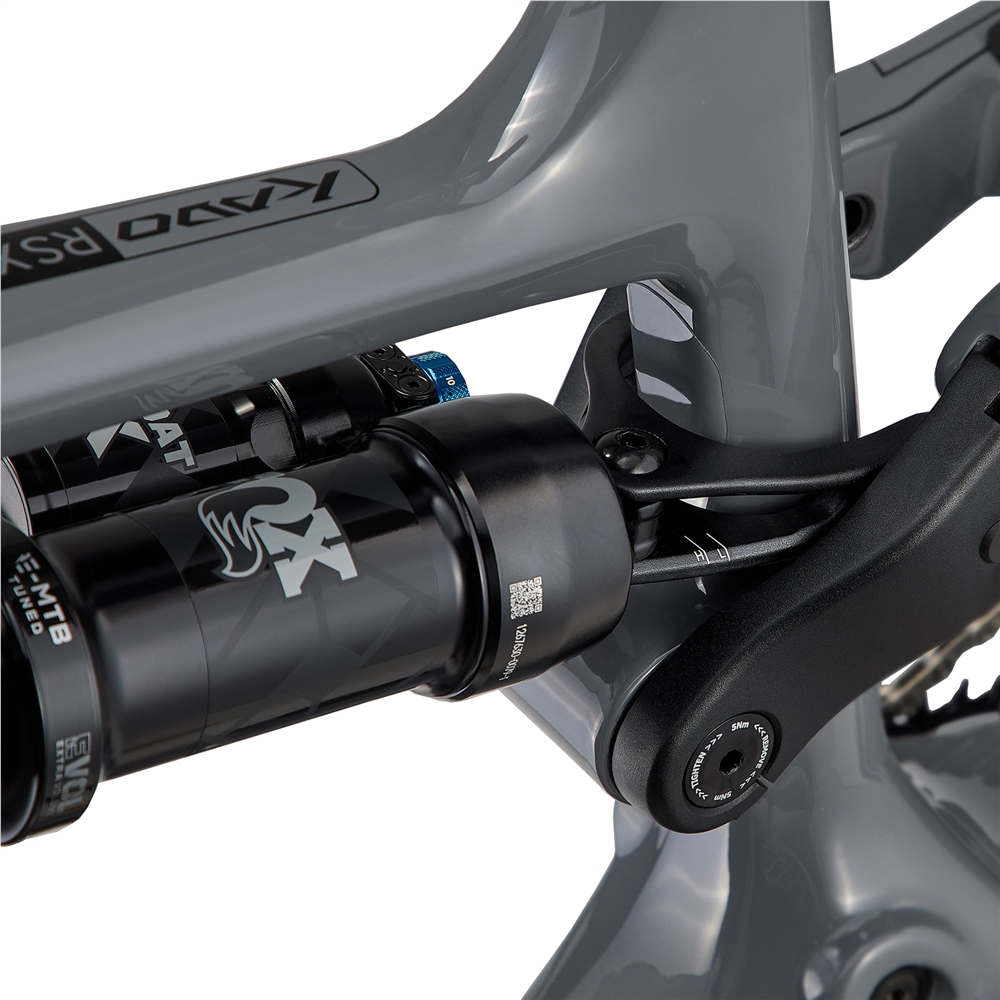

REAR SHOCK: Fox Float X Performance Elite DPS, EVOL LV, 230 x 57.5mm, custom tuned for Whyte
HEADSET: FSA No. 55R, 1-1/8in upper and 1.5in lower
REAR HUB: DT Swiss Hybrid H1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt    SEAT    Whyte Custom
FRONT HUB: DT Swiss Hybrid H1900, 110mm x 15mm Boost, six bolt    BAR    Race Face Turbine alloy bar, 35mm bar bore, 35mm rise, 800mm wide
SPOKES: DT Swiss Elemental
RIMS: DT Swiss Hybrid H1900
TYRES: Maxxis Assigai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.4in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound (rear)
SHIFT LEVERS: SRAM AXS Pod, right, MMX, 12 speed
FRONT MECH: Not Applicable
REAR MECH: SRAM S1000 AXS Eagle, 12 speed
CASSETTE: SRAM XS 1275, T-Type, 10-52T, 12 speed
CHAIN: SRAM: GX T-Type, 12 speed
CRANKSET: Whyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
BOTTOM BRACKET: Not Applicable
SEATPOST: TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
STEM: Whyte, 35mm extension, 35mm bar bore
GRIPS: Whyte Enduro lock-on

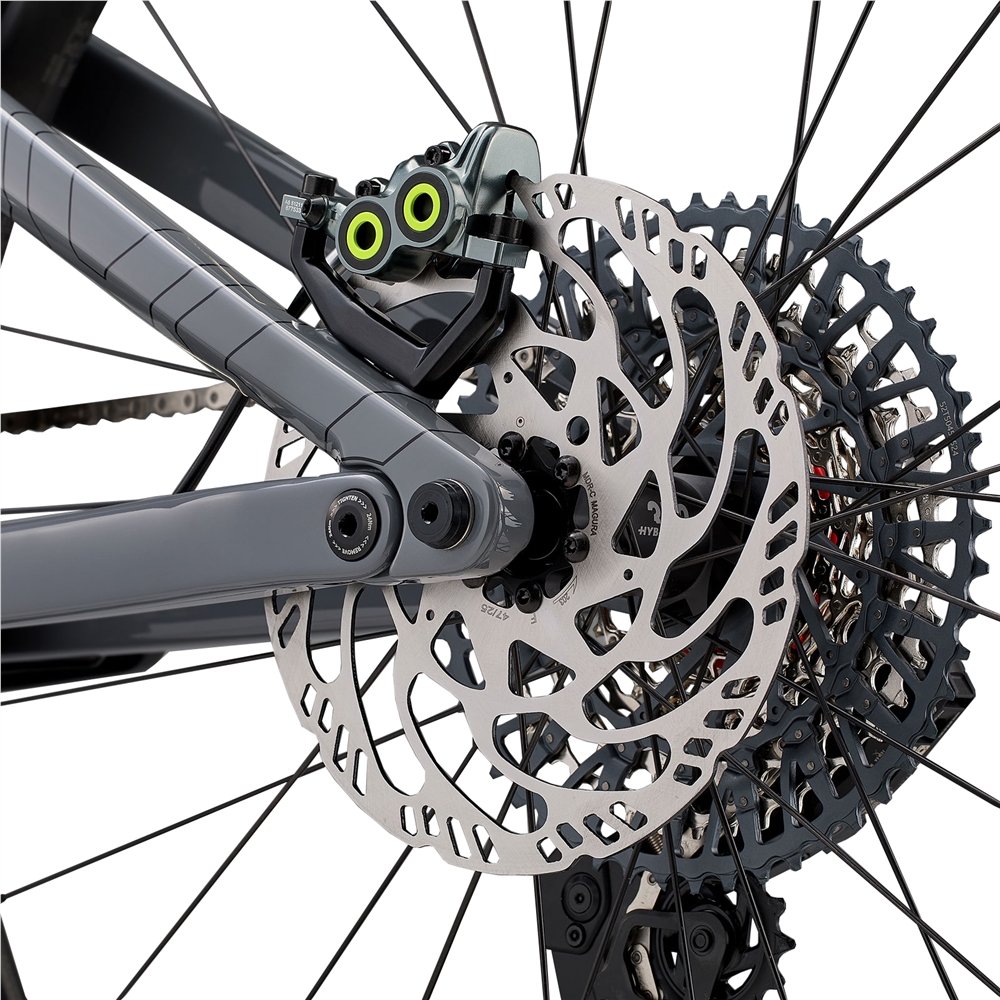

BRAKES FRONT: Magura MT7 hydraulic disc brake, 203mm MDRC six bolt rotor
BRAKES REAR: Magura MT7 hydraulic disc brake, 203mm MDRC six bolt rotor
BRAKE LEVERS: Magura MT7 one finger lever
PEDALS: Fibre reinforced composite platform
DRIVE UNIT: Bosch Performance Line CX (Smart System) drive unit with 100Nm maximum torque, 750W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB+. AXS derailleur powered off motor.
BATTERY: Bosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Bosch PowerMore 250Wh range extender compatible.

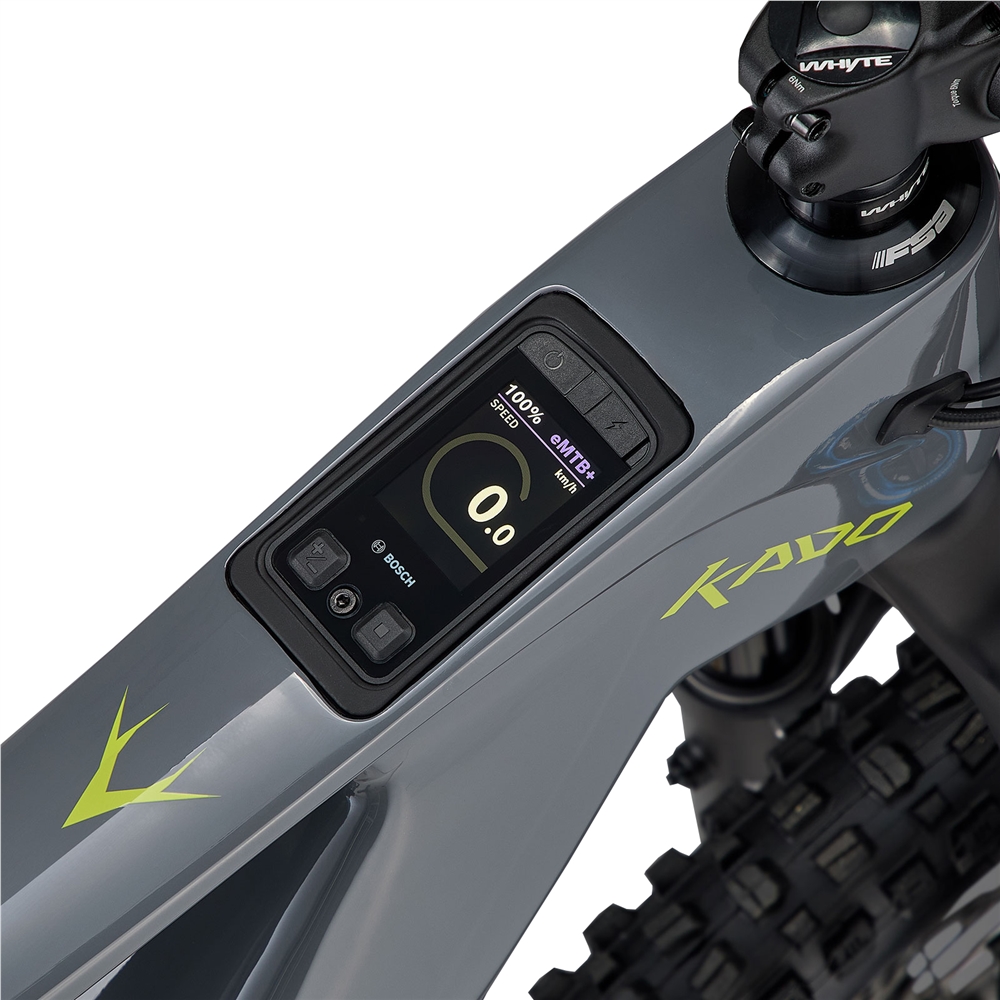

DISPLAY: Bosch Kiox 400C LCD display mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
CHARGER: Charger 4A (230V)
