Whyte

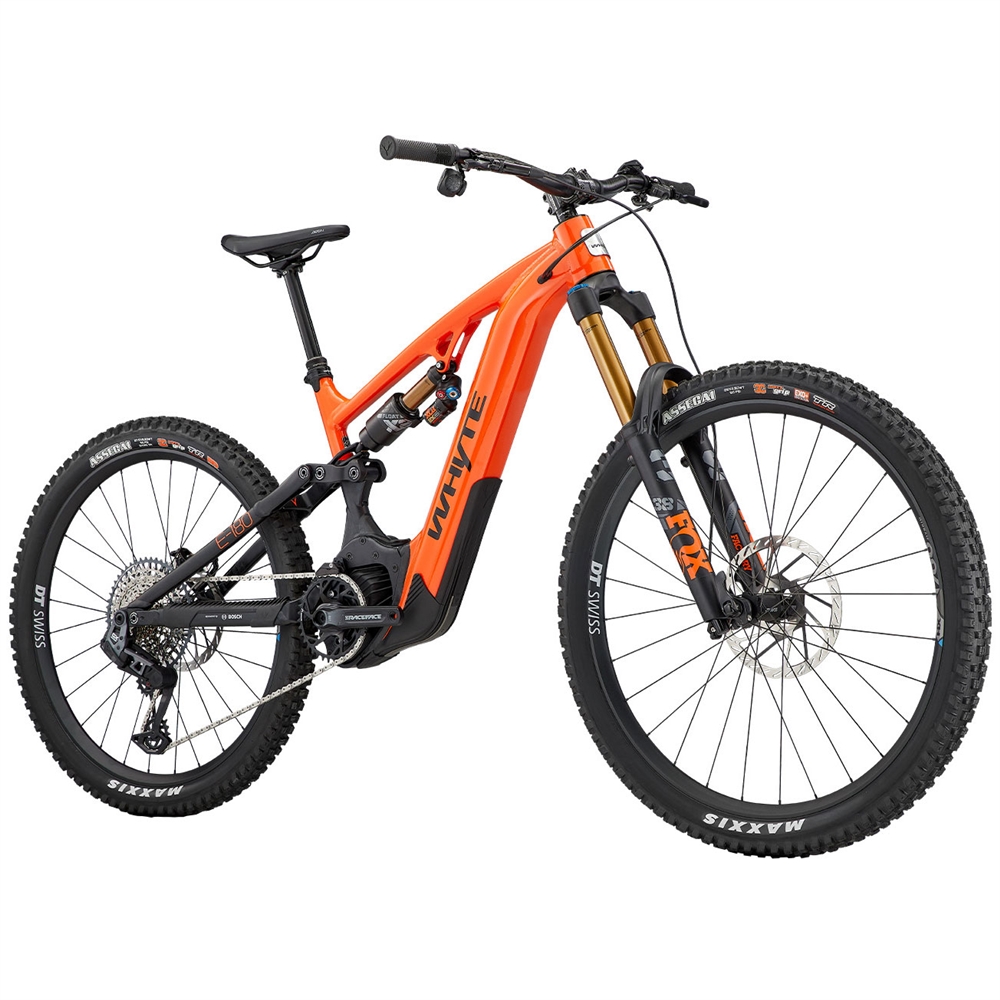

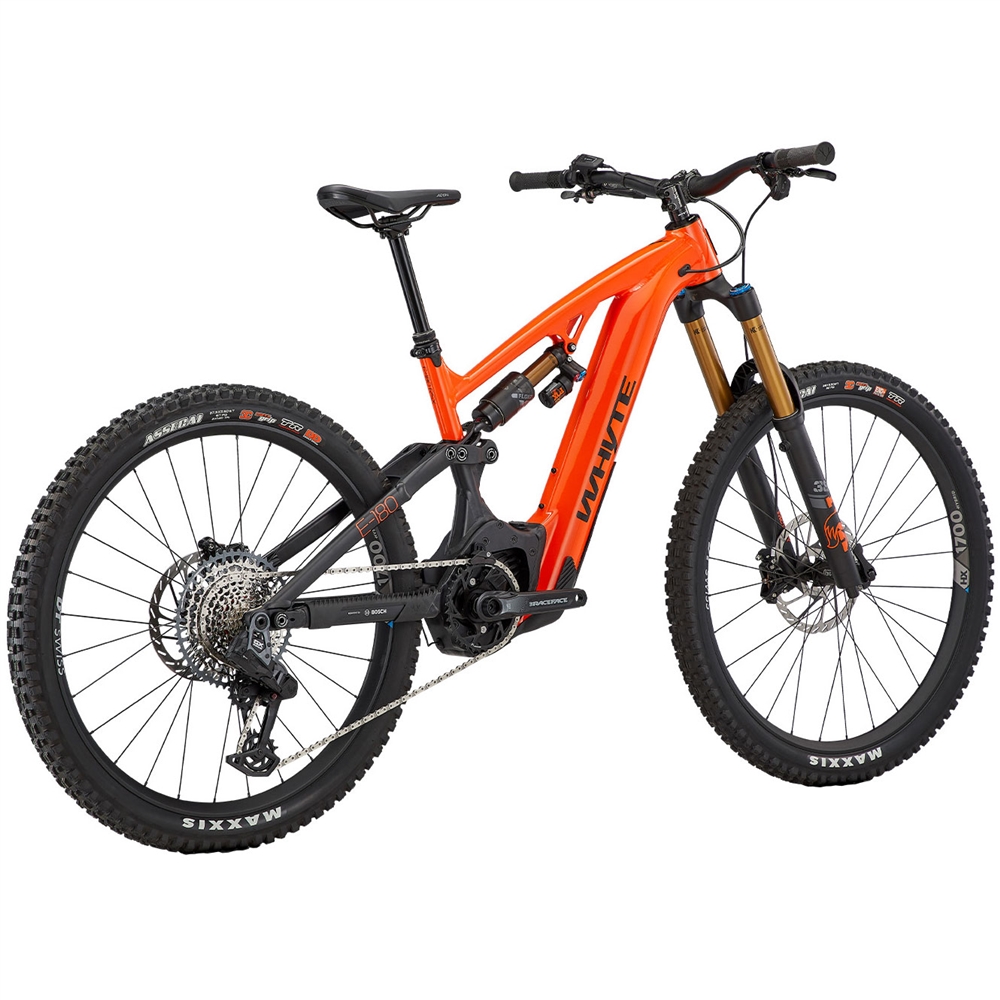

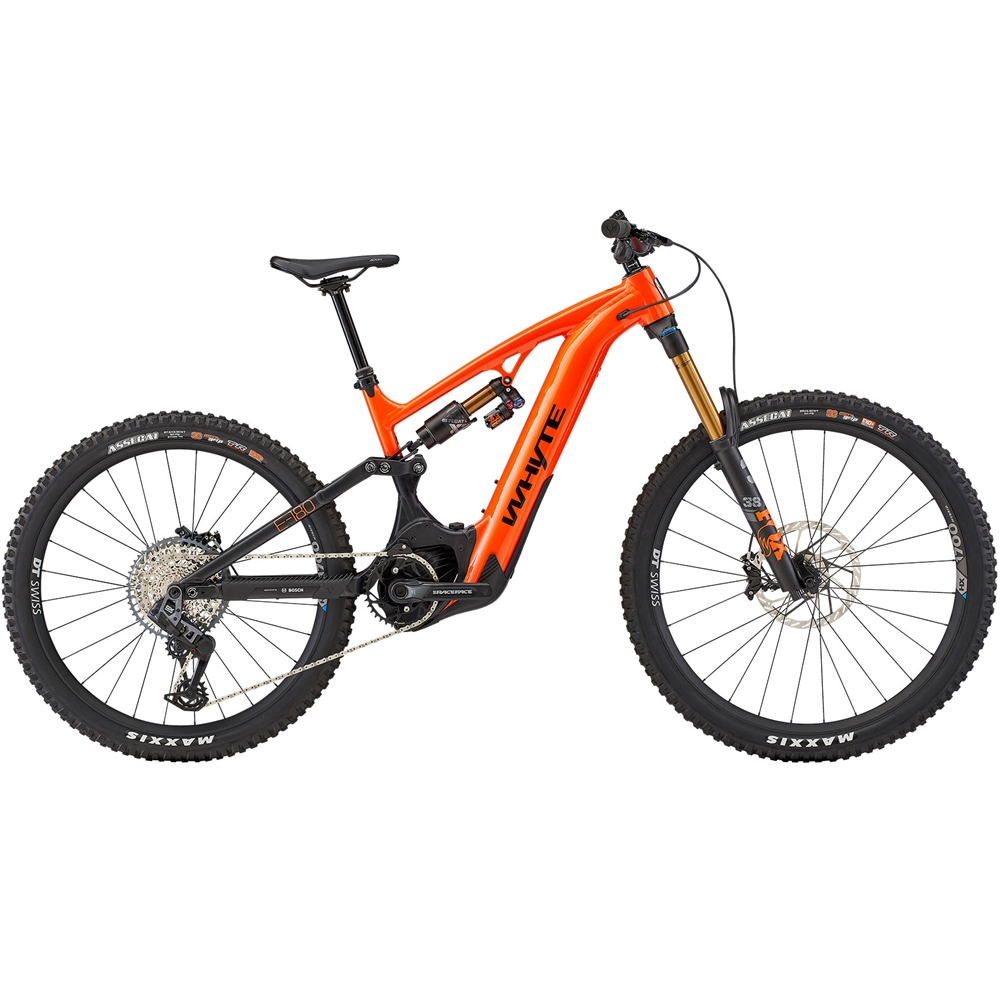

E-180 RSX Electric Full Suspension Mountain Bike - Gloss Orange (2025)

Go faster, go bigger – then go again

Our maximum control gravity e-bike for self-shuttled gravity riding, bike park play, and big mountain terrain. Super-low centre of gravity for agile and effortless handling; MX wheels; 180mm front and 170mm rear travel; Bosch’s CX 85Nm motor and 750Wh internal battery.

Highlights:

• Bosch CX motor + 750Wh internal slide-in battery
• Fox 38 Factory fork; Fox Float X2 Factory rear shock
• DT Swiss Hybrid HX1700 wheelset
• SRAM GX T-Type AXS transmission.

Motor:

E-Bike Motor: Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 250 w nominal power. Features 4 power settings including Tour+ that allows riders to focus on riding whilst being economic on power usage and eMTB mode which automatically adjusts the power assist ratio.

E-Bike Display: Bosch LED Remote allows for easy mode use and key charge and power mode visibility as you ride, and also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.

E-Bike Battery: Bosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Reaches full charge in less than 6 hours, and just over 2 hours for half charge. Supplied with Bosch's 4A Compact Charger

E-Bike Charger: Charger 4A (230V)

Specification:

Frame: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts

Fork: Fox Float 38, Factory 29", 180mm Travel, 44mm Offset with Grip 2 Damper and custom tune, Tapered Steerer, Kashima Coating, 110mm x 15mm Boost, E-Thru Axle

Rear Shock: Fox Float X2, Factory, independently adjustable Compression and Rebound damping, Kashima coating, 230 x 65mm, custom tuned for Whyte

Headset: FSA No. 55/35 Orbit 1.5 ZS, 1.8" Lower and 1 1/8" Upper Sealed Cartridge Bearings

Rear Hub: DT Swiss Hybrid HX1700, 30mm wide rim, 12 x 148mm Boost, SRAM XD Steel

Front Hub: DT Swiss Hybrid HX1700, 30mm wide rim, 15 x 110mm Boost

Rims: DT Swiss Hybrid HX1700

Tyres: Maxxis Assigai WT, TR, 29" x 2.5" 120TPI, EXO + Sidewall Protection, 3C MaxxGrip, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, Double Down Casing, 3C MaxxGrip, Dual Compound, Rear

Shift Levers: SRAM AXS Pod, 2 Button MMX, 12 Speed

Rear Derailleur: SRAM GX AXS T-Type 12 Speed

Cassette: SRAM XS-1275 T-Type Eagle, 10-52, 12 Speed

Chain: SRAM GX T-Type Eagle, 12 Speed

Crankset: Race Face Affect E-Bike, 165mm, ISIS with T-Type Direct Mount 36T for Bosch Performance Line CX, Black

Seatpost: Crank Bro High-Line 3, 30.9mm, M/L 150mm Travel,  XL 170mm Travel, High-Line Ball Socket Remote Lever

Saddle: Whyte Saddle

Handlebar: Race Face Turbine R, 35mm Rise, 35mm Bar Bore, 800mm Wide

Stem: Race Face Atlas, 35mm Bar Bore, 35mm Extension

Grips: Whyte Lock-on Enduro Grip

Front brakes: SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc

Rear brakes: SRAM Code RSC, 4 Piston with Sintered Metal Pads, 200mm Disc

Pedals: Not Included
