Tektro
M535 Gemini SL Disc Brake

Tektro's entry level 4 piston brake offers outstanding performance for mountain bikes or eBikes at an affordable price.

Available aftermarket as a Left or right-hand set with a 1.9m long hose. It features the EZ Plug in system which means the brake is pre-bled and pressure tested with a plugged Hose & Lever [not attached]. There is no need to bleed this brake.

The hose can be simply routed and cut to length to suit your bike, then attached to the lever.

Features:

• Powerful and controllable Hydraulic 4 piston Post Mount Caliper disc brake.
• Extra thick 5mm overall balance resin brake pads.
• Suitable for eBikes and mountain bikes requiring increased stopping performance.

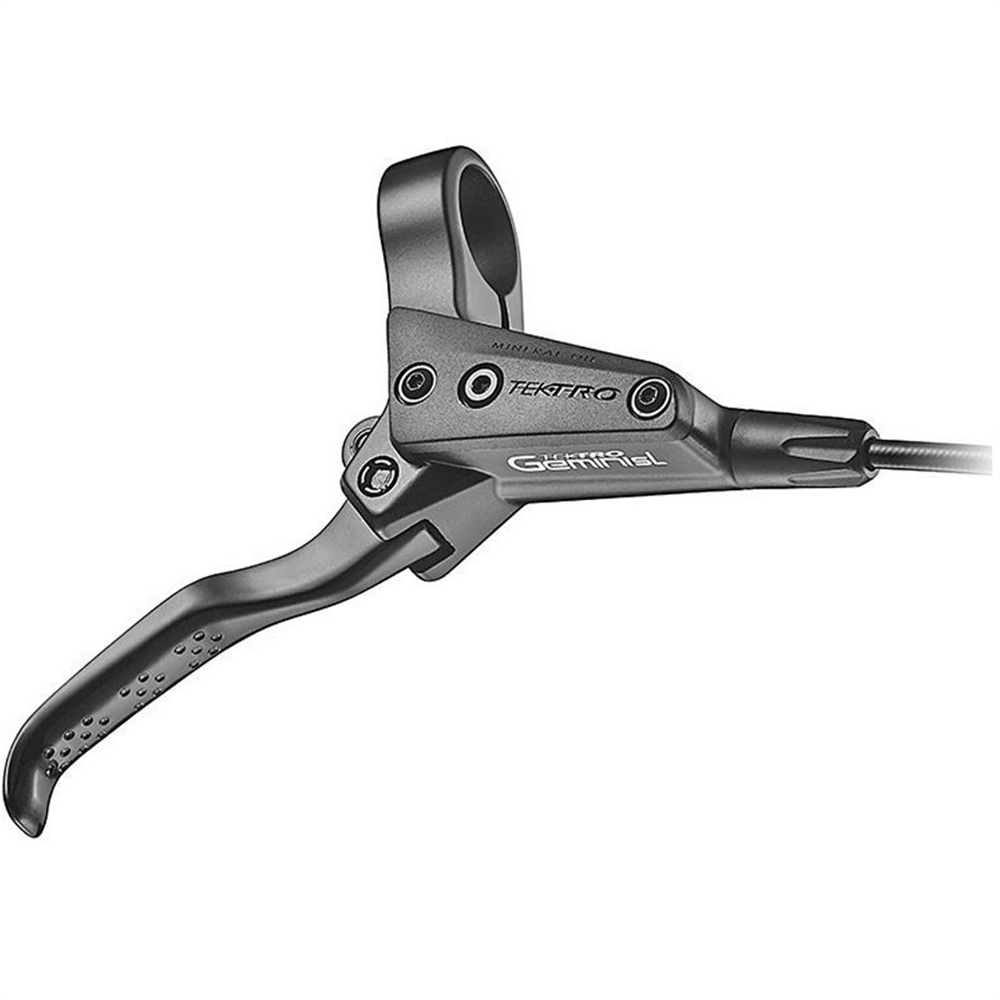

• Dimpled 2-finger lever with reach adjustment. Lever blades are available as spares.
• The low-noise resin brake pads provide smooth braking with easy pad replacement.

Specification:

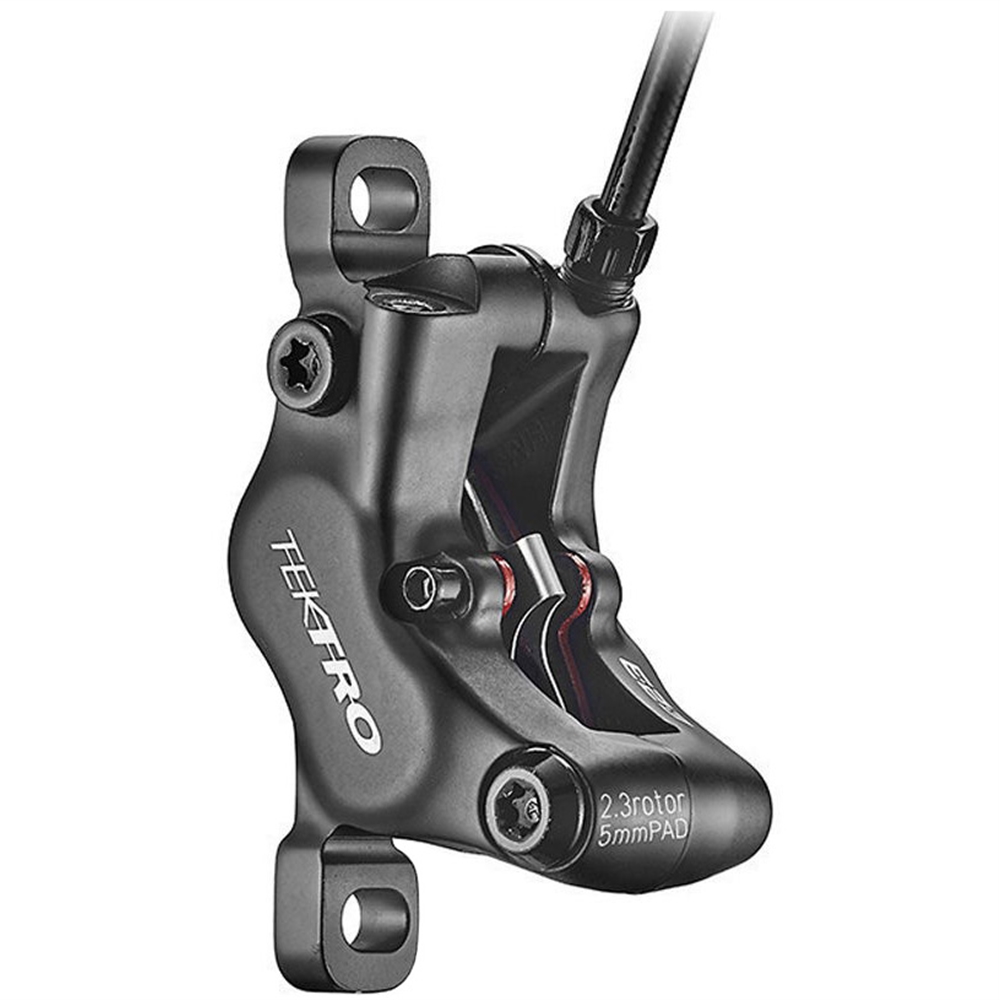

• Caliper: 4 piston forged aluminium body. Post Mount
• Hose: 5.0mm x 1.9m
• Finish: Black only
• Disc: 2.3mm thickness required (not included)
• Lever: Aluminium lever / Cast bracket / One-Piece Clamp / 2 Finger Blade
• Pad: Q13RS 5mm extra thick pad. Easy replacement
• Weight: Front: 300g front / Rear: 320g (Excludes rotor, adapter & mounting bolts)

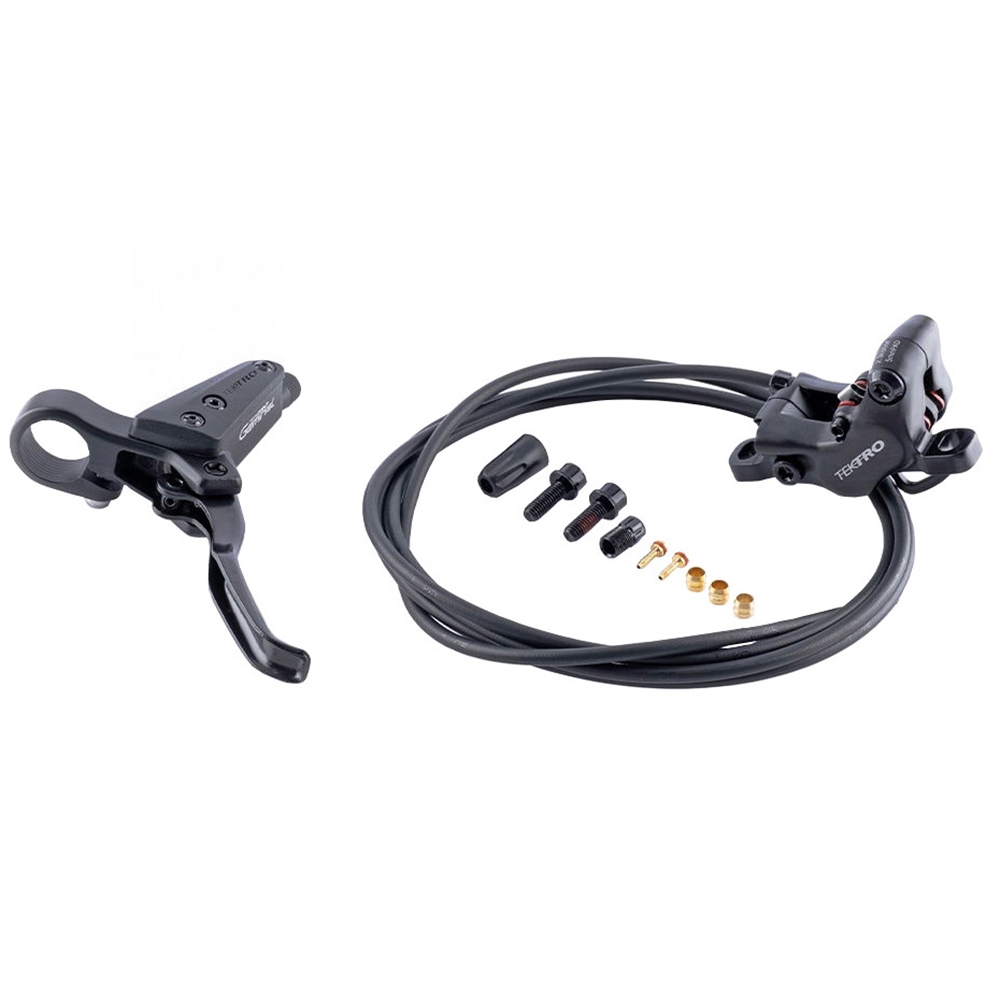

• Includes: Olives x3 / Barb x2 / Caliper mount bolts x2 / Compression nut & cover x1
