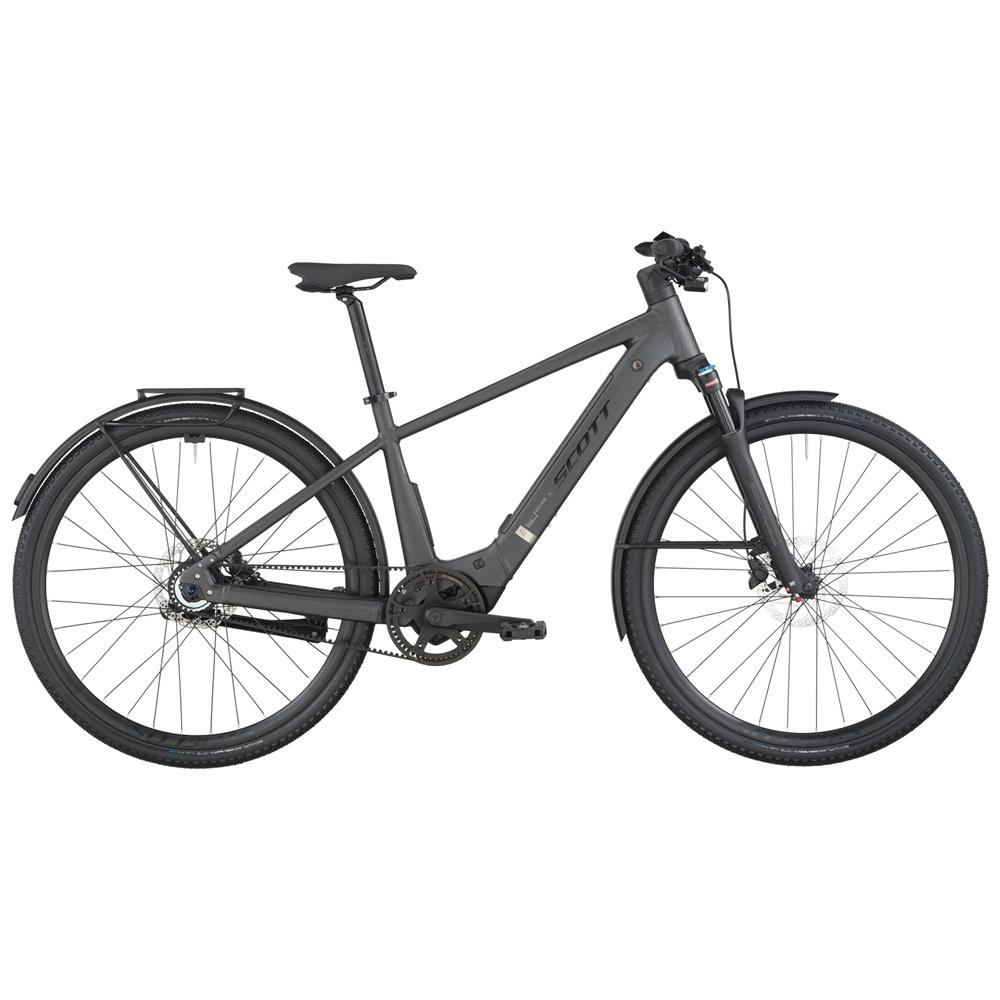

The Passage 10 Belt E-Bike is your ticket to electrified city riding and hassle-free home maintenance. We designed Passage in a trim build and a sleek frame that perfectly complements the lightweight Bosch SX motor. Together, they’re a dynamite duo that provide plenty of punch to spin up city hillsides or navigate traffic with ease.
On the ride, Passage feels weightless, thanks to a balanced geometry and even-weight distribution, the motor unit and 400Wh battery held low on the frame. The Bosch SX motor is also nice on the legs, featuring a narrower Q-factor that lets you have a natural pedaling style compared to larger e-bikes you’ll see in the city. If you encounter some rougher pavement as you’re zipping around town on the Passage, you can trust the 75mm suspension fork to give the cushion to maintain control. And if you’re going long, the rear rack sets you up to stow the day’s essentials.
This Passage 10 uses a belt drivetrain that stays much cleaner than a traditional chain drivetrain, uses no lubricant, won’t snag on your clothing, and requires little to no maintenance. So when you’re ready to park Passage for the day, just kick out the kickstand and thank it for the effortless ride.
Specification:
Frame: Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery
Fork: SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel
Shift Levers: Shimano Alfine SL-S503 Rapid Fire Plus
Front Brake: Shimano BR-MT200 Disc
Rear Brake: Shimano BR-MT200 Disc
Front Brake Disc: SM-RT30 CL 180mm
Rear Brake Disc: SM-RT30 CL 160mm
Front Wheel Rim: Syncros X15 Disc
Rear Wheel Rim: Syncros X15 Disc
Front Tyre: Schwalbe G-One Overland 365 Performance, 700x45C
Rear Tyre: Schwalbe G-One Overland 365 Performance, 700x45C
Front Hub: Shimano HBTC50015B CL, 15x100mm
Rear Hub: Shimano Nexus 8 Speed
Spokes: Black Spokes
Handlebars: Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount
Headset: Acros, 1.5"- 1.5", semi integ. OD 50/61mm, ID 44/55mm
Saddle: Syncros Capilano
Seatpost: Syncros M3.0, 31.6
Crankset: FSA CK-220 170mm
Chain: Gates CDC 125T
Cassette: Gates CDC 26T
Pedals: Marwi SP-827
Front Light: Lezyne Fusion E550SM
Rear Light: Supernova TL3Z
Rack: Racktime Micro Rack SnapIt 2.0 8KG
Mudguards: Alumee alloy profile Fender
Kickstand: Hebie Kickstand
Motor: Bosch Performance Line SX (BDU314Y)
Battery: Compact Tube 400Wh
Display: Bosch Purion 200
Charger: 2A Charger
