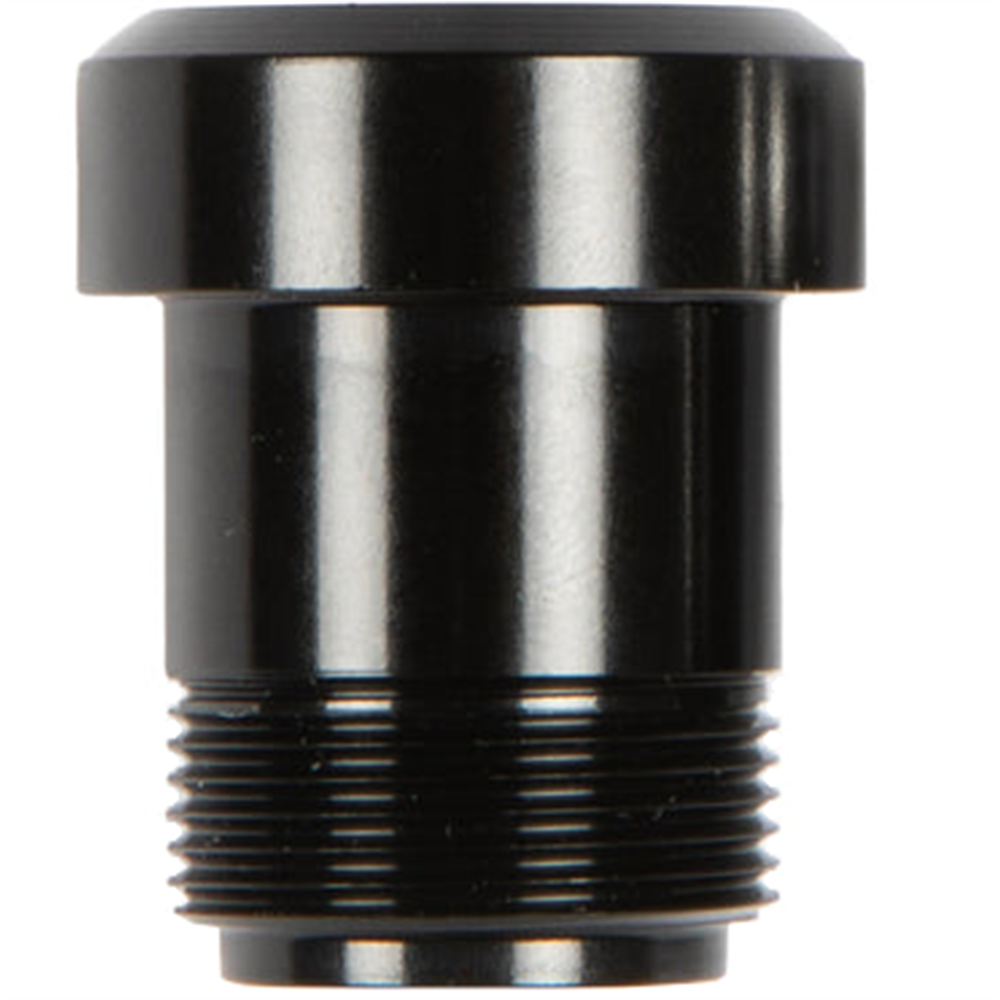

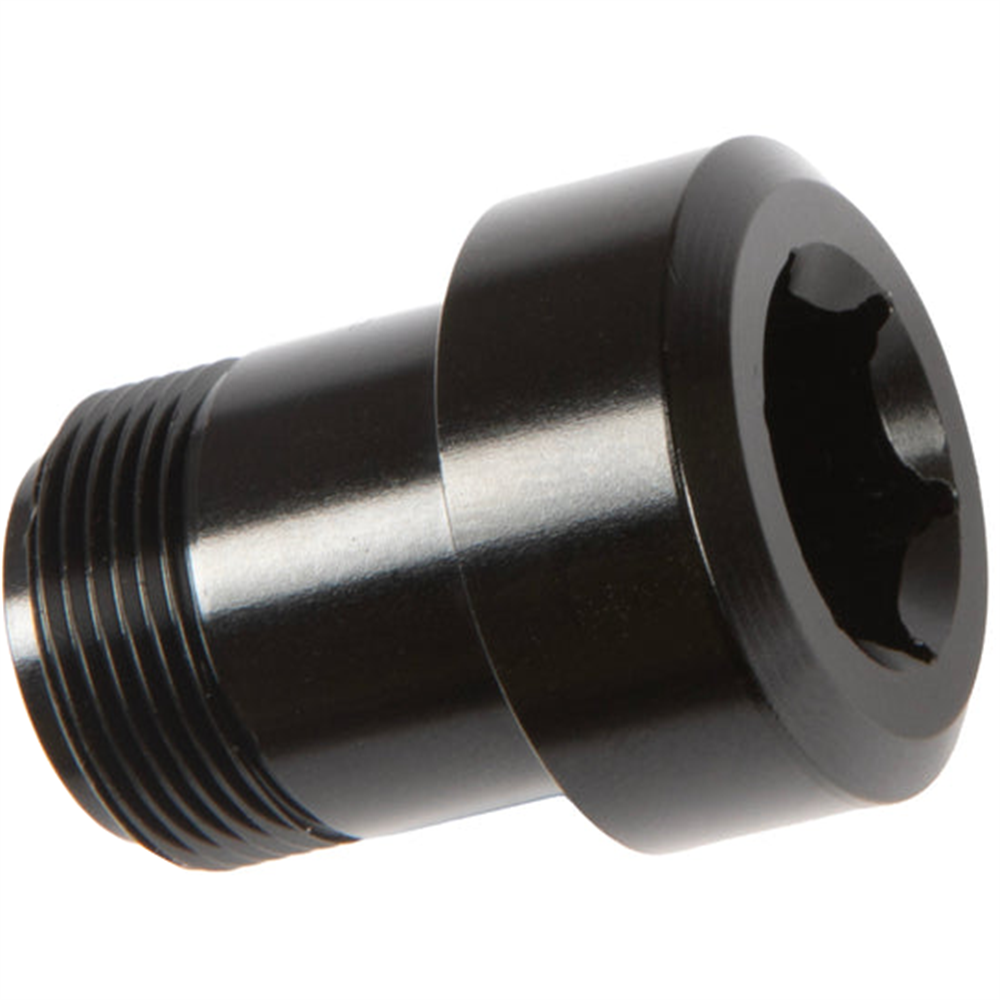

Switch Rack Full Mount Adapter FM23

A direct replacement for SRAM’s Full Mount Bolt Kit, designed to enable compatibility with Restrap’s Switch Axle and Switch Rack System on GX, XX, and X0 T-Type transmissions.

Full Mount Adaptor FM23 (GX):

• GX Eagle Transmission: RD-GX-E-B1
• Force XPLR AXS Transmission: RD-FRC-1E-E1
• Rival XPLR AXS Transmission: RD-RIV-1E-E1
• Eagle 70 Transmission: RD-70-A1
• Eagle 90 Transmission: RD-90-A
• S1000 Eagle Transmission: RD-S1000-E-A1

Fitting:

• Put your bike into the red setting gear on the cassette and engage the clutch release
• Partially remove your current thru-axle
• Undo and remove the bolt derailleur with an 8mm hex key
• Replace with the Restrap bolt, using the supplier adaptor if you do not have a 12mm hex key
• Swap in the Switch Axle and tighten

Compatibility:

• Designed for use with Restrap Switch Axle, 1mm thread pitch

Specification:

FM23 (GX): Ø23mm x H:28.80mm
Weight: 13.8g
Torque: 35Nm
