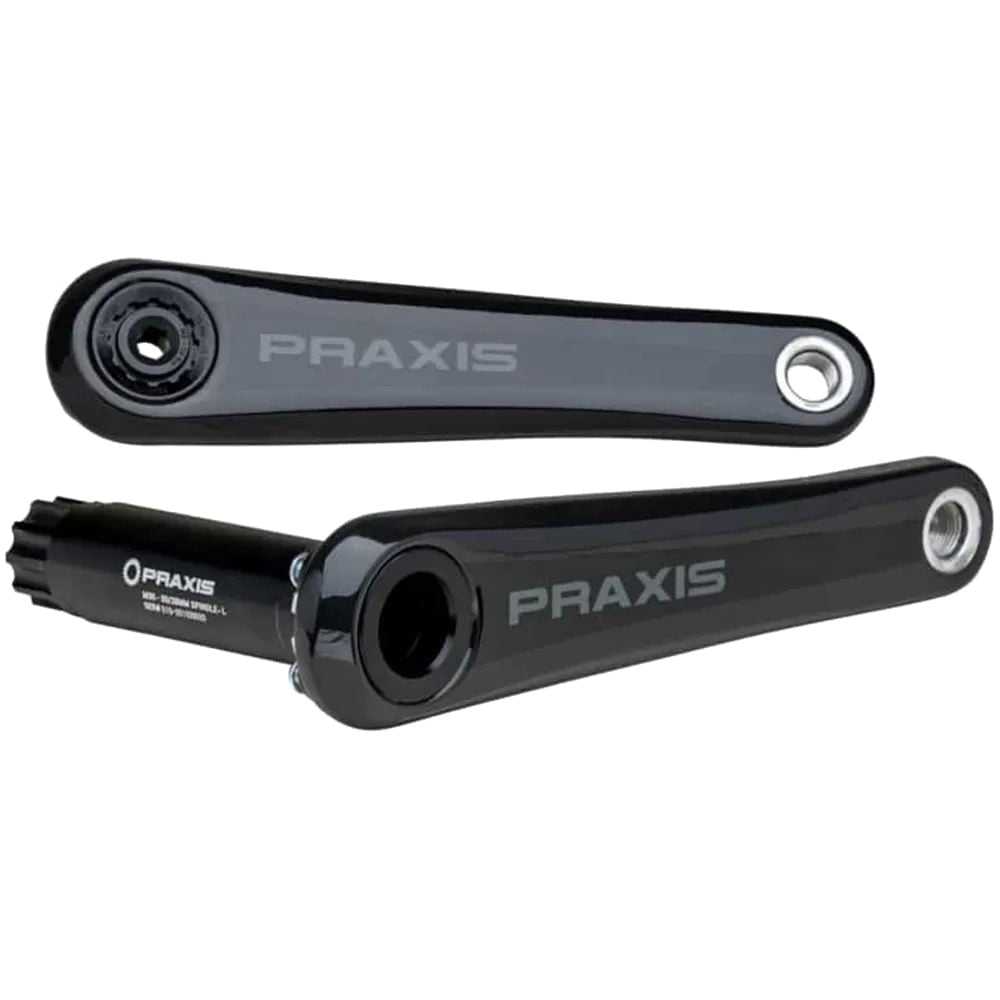

Zayante Carbon Crankarms

New armset-only option

The Northern California Coast and Santa Cruz Mountains are steeped in road riding history. To honour it, we named our new top-level crank Zayante, after the fabled redwood-covered climb so-named – secret training ground for many local pros. The Zayante Carbon is the ultimate marriage of lightness, stiffness and versatility.

Specification:

•
  Material - Carbon Arms | Alloy M30 Spindle (30mm/28mm).
• Gearing – Not applicable
• Chain – Not application
• Average Weight - 408g (172.5mm).

Chainline:

• 2x = 44.5mm ROAD | NOT compatible with Shimano GRX front derailleurs.
• 1x = 45.5mm ROAD.
• Q Factor - 147mm.

Drivetrain:

• Shimano - Compatible with both Di2 and mechanical Shimano 10/11/12sp.
• SRAM - Compatible with both eTap and mechanical SRAM 10/11/12sp.
• Campagnolo - Compatible with both EPS and mechanical Campagnolo 10/11/12sp.

• Main Bolt - 8mm Alloy Main Crank Bolt for install/self-extract.
• Bottom Bracket - This crank requires our Praxis M30 BB. 30mm Drive Bearing | 28mm Non-Drive Bearing.
  M30 BB (Required Here) | BSA/BB86/T47 I.B./T47 E.B./BB30/PF30/386EVO/BBRight.

Technology:

• In-House Carbon "RTM+Filament Winding" Manufacturing.
• LevaTime II Shifting

Power Meter Options - After-Market Power Meters for this crank:

• Power2Max - NG and the NG Eco 3-Bolt.
• SRM - 3-Bolt.
• Garmin - Vector 3.
• Look - Exakt.
• Favero - Assioma.
• Velocomp - Power Pod.
