Praxis Works

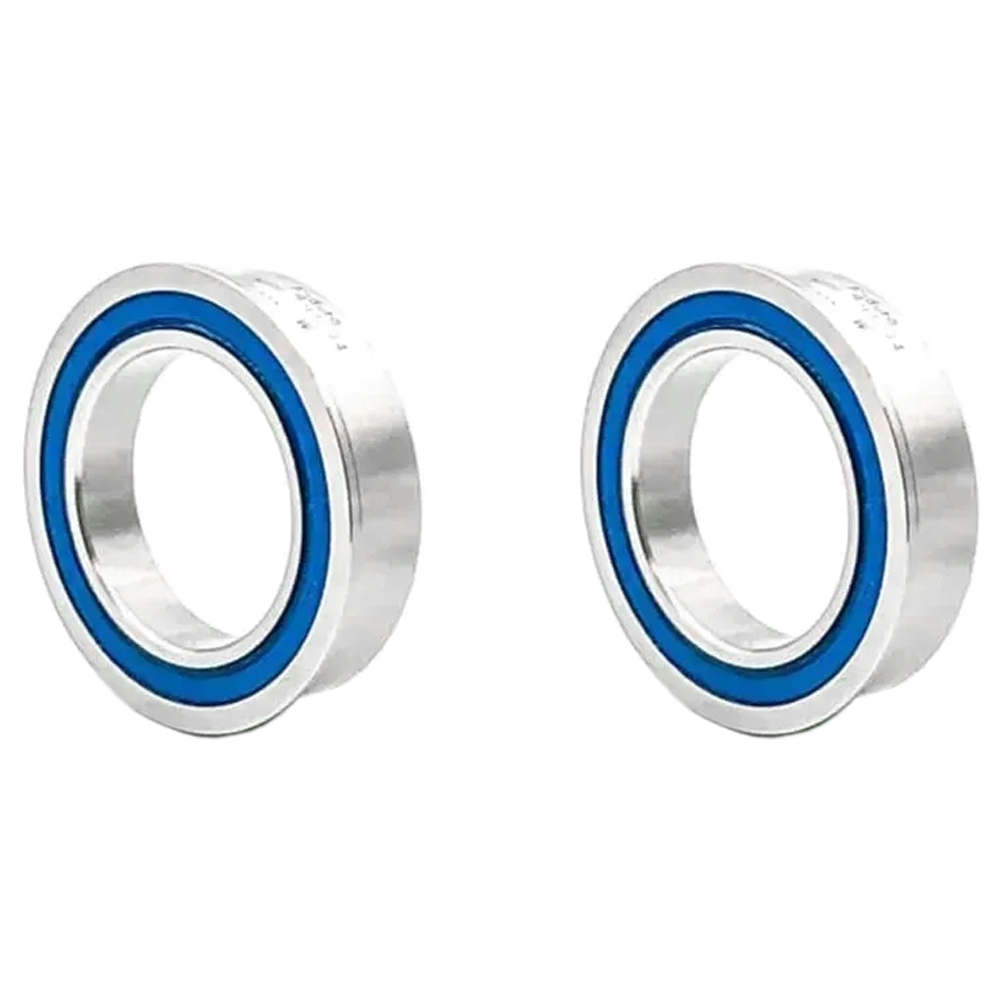

M30 THRU Bottom Bracket - PF86/90/92

M30 Thru BB

The Praxis M30 Thru BB is designed to be a proper bottom bracket (BB) for installing the Praxis Lyft Carbon Crank, RaceFace "Cinch", Rotor REX MTB Crank or CaneCreek eeWings. The Praxis patent pending design keeps the Enduro 6806 cartridge bearings outboard of the frame for greater rigidity and free of frame/c-clip tolerance issues that other systems deal with.

For Press Fit Options...

Simply press in the longer non-drive-cup, then thread the shorter Drive cup into it. As the drive cup threads in, the trademark Collet system expands to a precise limit evenly dispersing pressure for a super tight fit. With both cups connected and the collet set exactly to spec, there is no chance the bearings can come out of alignment or wiggle/walk out of the frame. This design also uses a compressible o-ring on the non-drive side cup to compensate for frame shell width discrepancies.

• For Praxis Lyft Carbon, RaceFace "Cinch", Rotor REX MTB Crank or CaneCreek eeWings.
• 30mm Drive & Non-Drive bearing.
• 6806 Steel bearings.
• Forged & machined heat-treated 7075 T6 Aluminium.
• MTB Guides - ISCG05 & ST Mounted Good, ISCG03 Not Good.
• The Praxis M30 BB tools are needed for installation. The BB92 guide is required for BB92.
• For install in BB30, PF30, BB86, BB90 or BB92 frames.
• Unique all in one design in which the bearing outer race is also the outer press fit surface (BB86/90/92 Only).
• BB86 for ROAD | BB90 or BB92 for MTN.
• Road spindle: 103mm or longer for BB86 road frame shells.
• MTB spindle: 108mm or longer for BB90/92 MTB frame shells.
• BB86/92 frames need to be check with the frame gauge before fitting.
