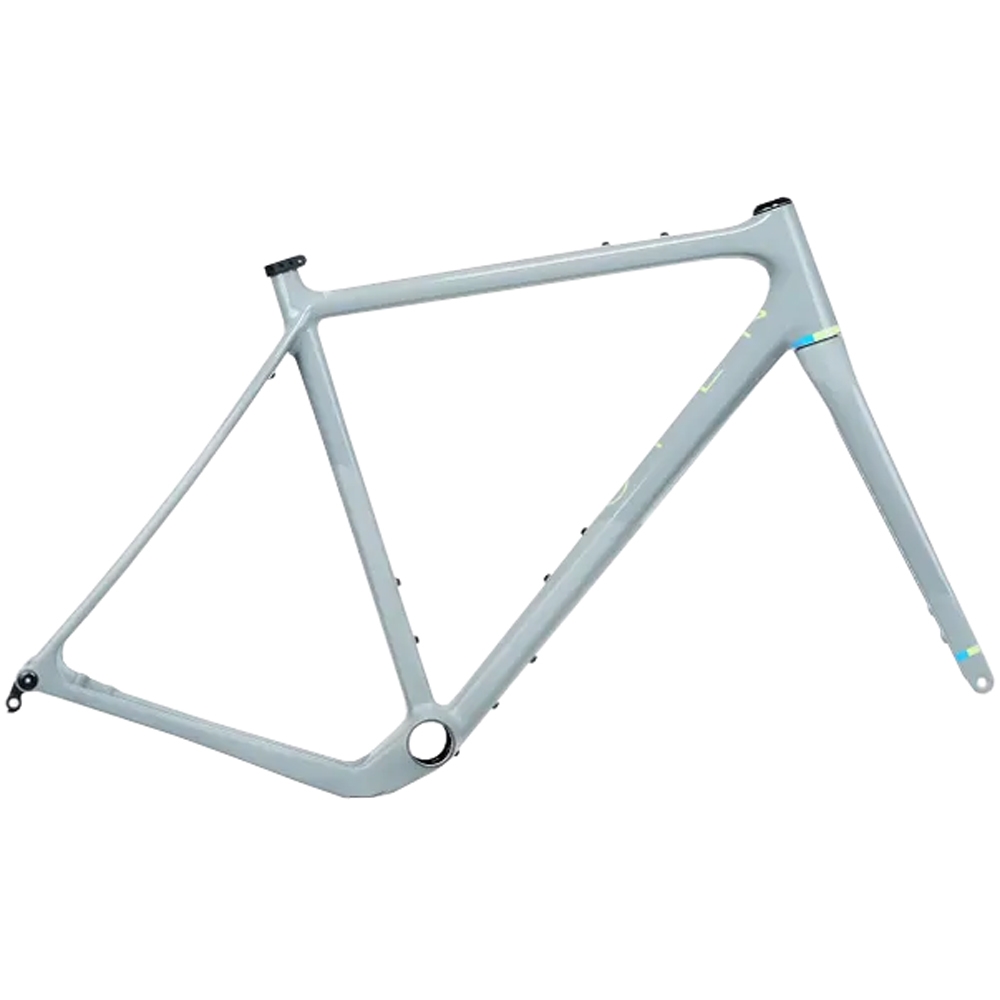

WI.DE. Gravel Bike Frameset - Grey Gloss/Matt

Monster Tyres, Nimble Ride.

The WI.DE. (Winding Detours) targets bigger tyres than the U.P. without compromising speed.

Thanks to its efficient rider position, the WI.DE. is deceptively fast on-road despite the big tyres. This always surprises first-time WI.DE. riders. So great fun on-road and no limits off-road.

Equally important is the handling. The WI.DE. retains its agility with anything from massive mountain tires to road tyres. Trigonometry helps us a bit here, as the trail automatically grows together with the tyre size, just like you want for tougher terrain.

Specification:

Weight: 1040g
Fork Weight: 390g
Sizes: XS / S / M / L / XL
Bottom Bracket Standard: BB386EVO pressfit 86.5x46mm BB shell
Recommended groupsets: The WI.DE. is dedicated 1x (or 2x with Classified hub). For serious gravel and off-road (on any brand of bike), we recommend a rear derailleur with a clutch or cage damper: any Shimano GRX, any SRAM AXS, any older SRAM 1x mechanical, Campagnolo Ekar)
Shimano crank fit: All road cranks
SRAM crank fit: All DUB road, Force 1 BB30
Front derailleur mount: None, 1x drivetrain standard, 2x only with Classified hub
Recommended ring shape: Flat (for example Wolftooth)
Maximum 1x ring size: General guidance: 46t (flat ring, not available in all sizes with all BCDs so check with your crank supplier), 42t (SRAM offset ring). Note: clearance depends on chainline & chainring. 2mm space is required so please verify.
Minimum 1x ring size: In standard set-up: 38t (flat & offset rings). Smaller rings can work depending on cassette/rear derailleur/chain length setup
Front thru-axle: 100x12mm superlight Carbon-Ti X-12
Front disc rotor size: 160mm only
Front brake caliper mount: Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
Rear thru-axle: 142x12mm superlight Carbon-Ti X-12
Rear disc rotor size: 160mm only
Rear brake caliper mount: Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
MultiStop internal system: Mechanical 1x, Di2, eTap
Headset: Integrated IS42/28.6 | IS52/40 with 45x45 degree lower bearing). For example Cane Creek BAA1131 (upper) + Cane Creek BAA1161 (lower), Chris King DropSet 2 or Token Omega A83
Seatpost: 27.2mm diameter, standard set-up zero-offset
Fenders: Compatible with OPEN De-fender or clip-on style fenders (we prefer the SKS Speedrocker)
Cage mounts: Seattube, downtube, under-downtube, under-BB
TT bag mount system: 100mm front-post-to-headset-edge
Max. weight (total rider+luggage): 120kg / 264 lbs EN/ISO/internal test standard
Included with frameset:

• Headset
• Seattube top clamp
• Rail clamp
• Thru-axles
• 2 RD hangers
• 2 MultiStops (1x, Di2, eTap)
• Cable exit stop
• Noise-reduction foam sleeves
• Bottle cage bolts
• Manual
