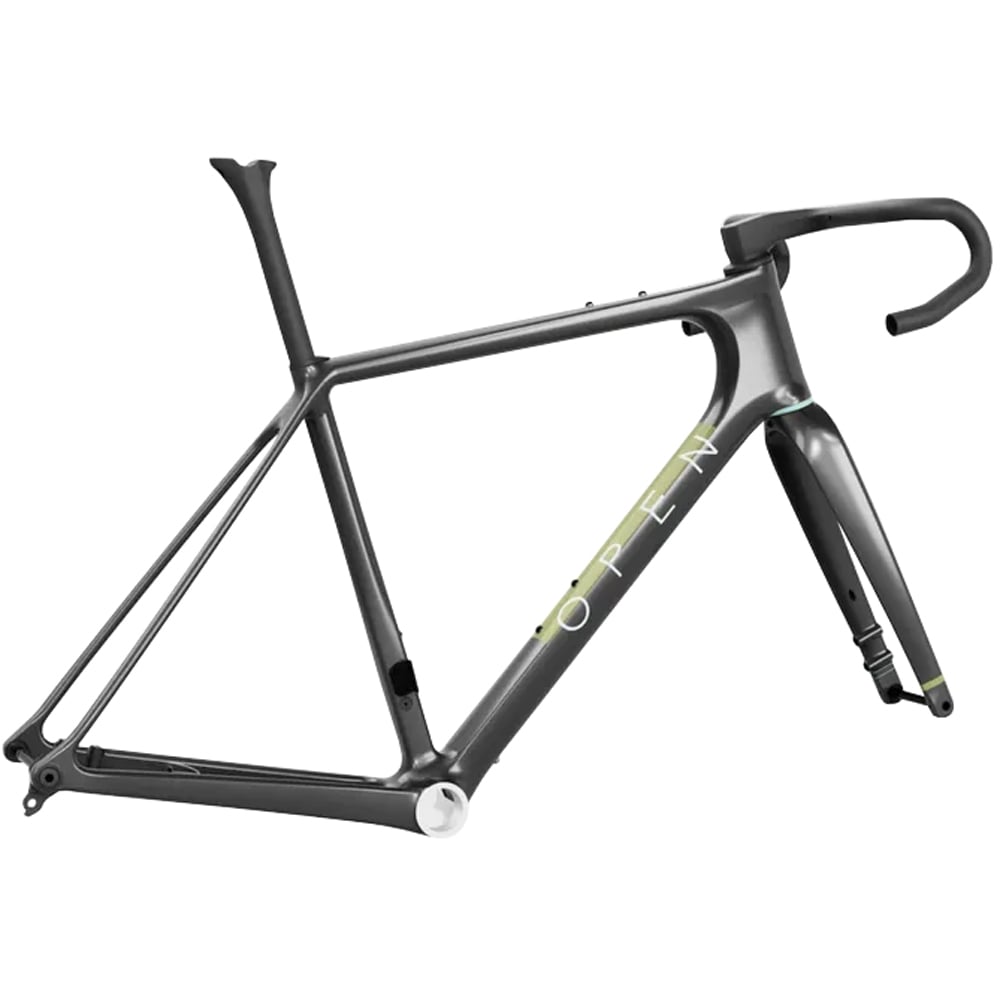

U.P.P.E.R 2.0 Gravel Bike Frameset And Cockpit - Black

10 years after the OPEN U.P. defined the gravel bike, we have perfected it with the U.P. 2.0 and superlight U.P.PER. 2.0.

The latest generation of the U.P.PER. adds more speed, even crisper handling and more tire clearance (up to 46mm true width) to its already legendary comfort and toughness.

Now more than ever, it is THE gravel frame that can hang with the roadies on pavement and take off when the roads turn rough.

The U.P.PER. 2.0 is finished in carbon black with forest green downtube patch. The chassis includes frame, fork, headset, seatpost and the OPEN B.A.R. integrated one-piece bar/stem.

Highlights

• A light, nimble gravel bike for fast racing or riding. Even an overnighter or fast tarmac group ride is possible thanks to its comfort, efficiency and speed.
• To ride faster & farther requires high comfort & low drag. The new frameset keeps OPEN's legendary frame compliance while adding aero where it matters.
• Optimized for 35-46mm tires (44mm on the CONCE.PT) for the most responsive and fun handling possible on all terrain. To go even bigger, consider the WI.DE.
• Full-carbon closed-shape design (no inserts or clamp cut) for optimal stiffness, strength & weight. 10 sizes, each can adjust stem length by 15mm in 5mm steps.
• Made in Freedom - in Portugal. As entrepreneurs, we have a choice where to invest. And to us, cycling means freedom, so we invest accordingly.
• Worry-free details such as a UDH hanger, a T47 threaded BB and internal routing with easy cockpit adjustments mean more riding and less wrenching.Made in Freedom - in Portugal. As company owners, we have the luxury to align our company direction with our personal beliefs. That's why we move all frame production to Portugal.

Specification:

Weight: 880g - excl. metal parts (but incl. T47 threaded BB shell)
Fork Weight: 375g
Frame: XS/S/M/L/XL
Fork: XS/S/M/L/XL
Stem/Handlebar: 60-130mm length, 380-430mm width
Seatpost Diameter: Round 27.2. Compatible with many brands and models including dropper and/or suspension seatposts.
Bottom Bracket Standard: T47 threaded bottom bracket (internal cups) with 86mm wide BB shell
Recommended groupsets: All Shimano GRX Di2 / All SRAM AXS
Maximum compatible chainring sizes:

• Shimano GRX 1x: 52T (Shimano offers up to 46T, aftermarket aero rings from for example WolfTooth available up to 52T)
• SRAM AXS 1x: 52T (SRAM offers up to 50T, aftermarket aero rings from for example WolfTooth available up to 52T)
• Shimano GRX 2x: all cranksets (maximum offered is 48-31T)
• SRAM AXS 2x: all cranksets (maximum offered is to 50-37T)

Note: "Standard" oval rings usually fit 2 teeth bigger than their round counterparts (i.e. a 42T oval ring fits like a 44T round ring). For heavily ovalized rings, the delta is larger.

Front thru-axle: 100x12mm superlight Carbon-Ti X-12.
Front disc rotor size: 160mm only
Front thru-axle: 100x12mm superlight Carbon-Ti X-12
Front brake caliper mount: Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
Rear disc rotor size: 160mm only
Rear brake caliper mount: Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
Rear disc rotor size: 160mm only
Rear brake caliper mount: Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
Front Derailleur Mount: Bolt-on, removable
Chain catcher: Custom Wolftooth chain catcher Note: attaches to the mounting points for the front derailleur mount
Headset: Identical standard IS52/40 x 45o upper & lower bearing
Computer mount:

• Integrated computer mount: Compatible with Garmin, Wahoo & Hammerhead (using Hammerhead's Wahoo-insert).
• Integrated GoPro mount: Compatible with GoPro and other compatible devices (lights, etc).

Indoor trainer compatibility:

• We recommend Direct Drive indoor trainers only. These are trainers where you remove the rear wheel of your bike and install the bike onto a cassette that is fixed onto the trainer.
• IMPORTANT: Some trainers may require an adaptor to fit the frame. The U.P.(PER) 2.0 uses a 142x12 thru-axle with M12x1.0 thread. These trainers are compatible with our FRAME, but you must check compatibility with your GROUPSET. For example, not all trainers are compatible with 13s cassettes or may require an adaptor.

Max. weight (total rider+luggage): 120kg / 264 lbs - EN/ISO/internal test standard
Included with frameset:

• Frame + Fork
• OPEN B.A.R.Seatpost
• Headset
• UDH RD Hanger
• 2 MultiStops (1x, Di2, eTap)
• OPEN x Wolftooth chain catcher
• Computer mount & GoPro mount
• Noise-Reduction Foam Sleeves
• Manual
