CUBE

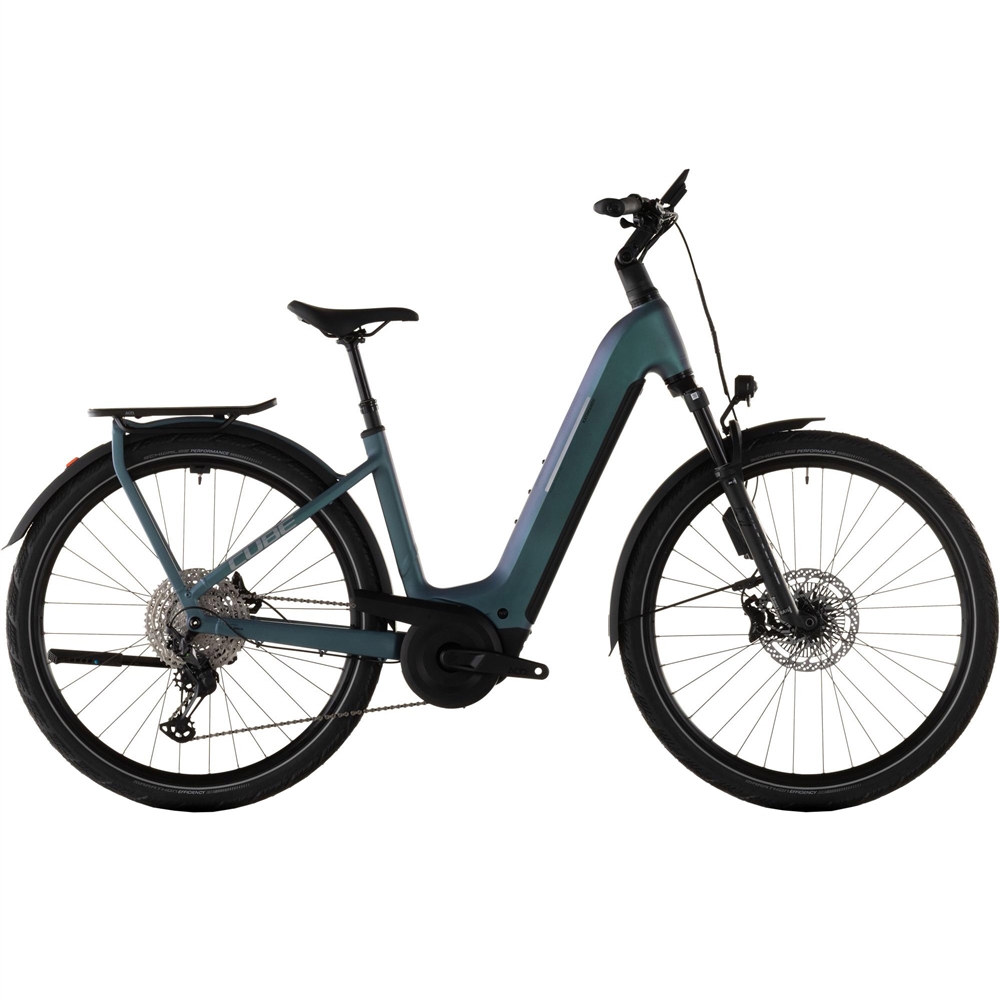

Kathmandu Hybrid EXC 800 Easy Entry Electric Hybrid Bike - Smaragd Grey/Prism (2026)

The CUBE Kathmandu Hybrid EXC is built to go places. We started with Bosch's CX motor and an 800Wh PowerTube battery, to give you up to 100Nm of pedal assistance on your way to work or to adventure. Then we chose Shimano's legendary XT 1x12 gears, for their huge range and dependable performance. Added 4-piston Shimano hydraulic disc brakes with ABS, so you know you can always slow and stop safely. And finished with a smooth, comfortable Fox 34 AWL Float Sport suspension fork. But that's not quite all, because of course there's also an adjustable stem, dropper seatpost and our strong, elegant and versatile Integrated Carrier 3.0, plus a full complement of accessories. The Kathmandu Hybrid's Easy Entry frame is designed to do exactly what it says, making adventurous cycling as accessible and straightforward as possible. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Specifications:

Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, Integrated Seatclamp

Fork: Fox 34 Float Sport AWL , Tapered, 15x110mm, E-Bike Optimized, 100mm

Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC

Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable

Handlebar: CUBE Comfort Trail Bar HD, 700mm

Grips: ACID Travel Comfort

Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

Shifters: Shimano Deore SL-M6100-R, Rapidfire Plus

Brakes: Shimano BR-MT420 ABS, Hydr. Disc Brake (203/203) (203)

Chainset: ACID MTB Hybrid Pro, 40T

Chainring Size: 40T

Cassette: Shimano Deore CS-M6100, 10-51T

Number Of Gears: 12

Chain: KMC e12

Wheelset: ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

Tyres: Schwalbe Marathon Efficiency, PerfL, 55-622

Pedals: ACID PP Trekking

Saddle: ACID Sequence 180

Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

Front Light: ACID Front Light PRO-E 150 X-Connect, 12V, DC

Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC

Kickstand: ACID FM Pure Kickstand

Mudguards: ACID 65 Integrated Carrier 3.0

Bell: Reich Cycle Bells Ringsound

Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible

Motor: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)

Battery: Bosch PowerTube 800

Charger: Bosch 2A

Remote: Bosch LED Remote

Display: Bosch Kiox 500

Max System Weight: 160Kg

Max Rider Weight: 125Kg
