ZoomCUBE

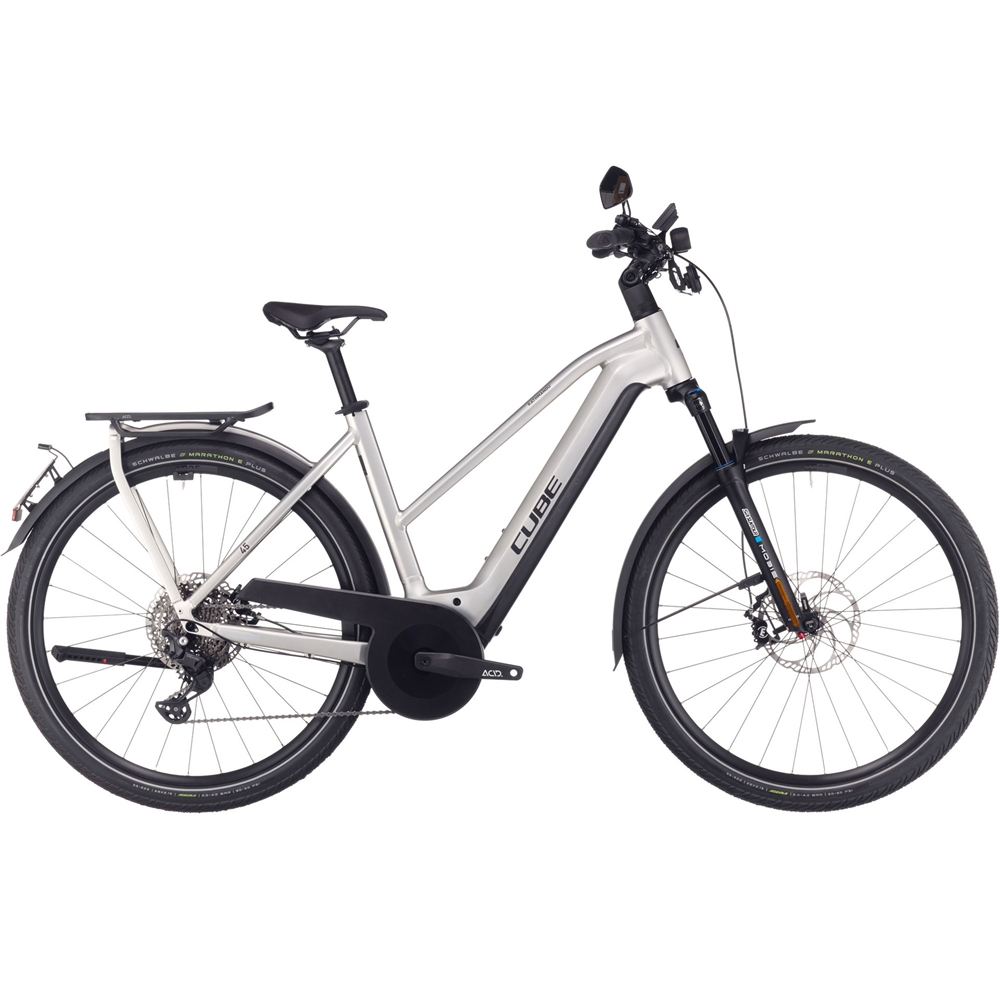

Kathmandu Hybrid 45 750 Trapeze Electric Hybrid Bike - Grey/Reflex (2025)
- Spread the cost over 6, 12, 24 or 36 months
- 0% APR Finance available on 6, 12, 24 months for orders over £250
- 0% APR Finance available on 36 months for orders over £1500
- Pay as little as 10% deposit
DITCH THE CAR
Designed for comfort, versatility and durability, the Kathmandu Hybrid 45's frame incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. The Integrated Carrier 3.0 is super-strong and stable as well as being integrated with the rear mudguard for an elegantly understated look that you'll love. It's the perfect way to add accessories and carry whatever you need with you. And it's all safety-tested in our own in-house lab to the highest standards, so you know you're in safe hands.
Specification:
Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
Fork: SR Suntour Mobie 35 LO-R Air, 100mm
Headset: M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar: CUBE Comfort Trail Bar, 700mm
Grips: ACID Travel Comfort
Rear derailleur: Shimano Deore, LinkGlide Technology, 10-Speed
Shifters: Shimano Deore SL-M5130-R10, LinkGlide
Brake: Magura MT5e Hydr. Disc Brake (203/203), Bremslicht
Crankset: ACID E-Crank, 48T, 175mm
Cassette: Shimano CS-LG-400, 11-43
Chain: Shimano CN-LG500
Wheelset: Newmen Performance 25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires: Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622
Pedals: ACID PP Trekking
Saddle: Natural Fit Sequence
Seatpost: CUBE Performance Post, 30.9mm
Seatpost clamp: CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm)
Front light: Supernova M99 Mini Pro, 250 Lux, 12V, DC
Rear light: Supernova M99 Tail Light, 12V DC
Kickstand: ACID FM Pure Kickstand
Mudguard: ACID 65 Integrated Carrier 3.0
Bell: Supernova Horn
Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
Engine: Bosch Drive Unit Performance Line (85Nm) Speed (250Watt), Smart System
Battery: Bosch PowerTube 750
Charger: Bosch 4A
Remote: Bosch LED Remote
Display: Bosch Kiox 300
