ZoomCUBE

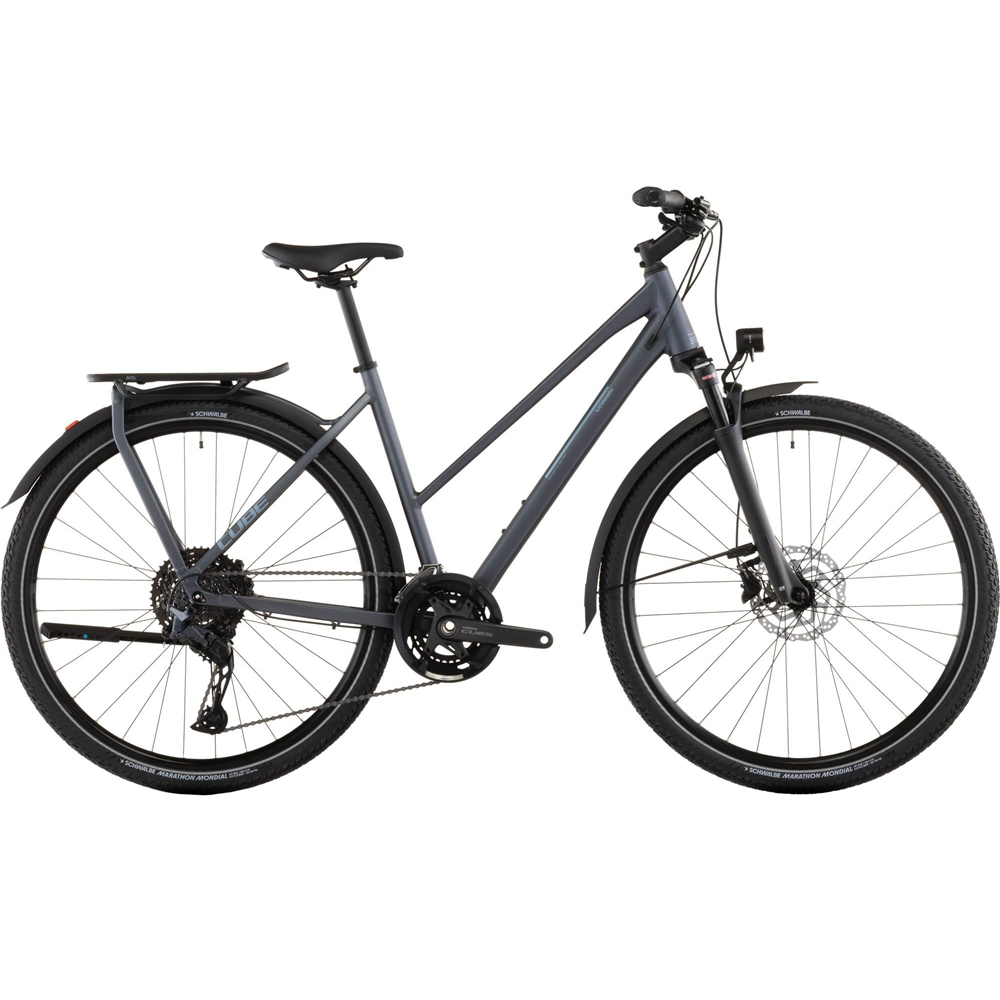

Kathmandu EXC Trapeze Hybrid Bike - Metallic Grey/Chrome (2026)
- Spread the cost over 6, 12, 24 or 36 months
- 0% APR Finance available on 6, 12, 24 months for orders over £250
- 0% APR Finance available on 36 months for orders over £1500
- Pay as little as 10% deposit
From zipping across town to tackling mountain passes you've never ridden before, the Kathmandu EXC from CUBE is designed to get you there – and back – in comfort and style. We chose Shimano's Cues 2x11 gears for their ease of use and reliability. Then we added powerful Shimano hydraulic disc brakes and Schwalbe's 47mm Marathon Mondial tyres, so you know you're in full control at all times. Finally, we selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces. With our Integrated Carrier 3.0 and a full complement of accessories – including mudguards, kickstand and lights – you've everything you need. Just jump on and go. CUBE design expertise is the name of the game for the Kathmandu's Trapeze frame. Its Integrated Carrier 3.0 is designed to work seamlessly with our ACID mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru-axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to complement the frame's clean lines, we reckon we've thought of everything. Just don't forget your toothbrush.
Specifications:
Frame: Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted
Fork: SR Suntour NCX32 E LO Air, 63mm
Headset: VP Integrated, Top 1 1/8", Bottom 1 1/2"
Stem: CUBE Performance Stem SLX, 31.8mm
Handlebar: CUBE Comfort Trail Bar, 680mm
Grips: ACID Travel Comfort
Front Derailleur: Shimano Cues FD-U6010, Top Swing, 31.8mm
Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
Brakes: Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180)
Bottom Bracket: Shimano BB-MT501, 68mm BSA
Chainset: Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard
Chainring Size: 46x32T
Cassette: Shimano Cues CS-LG700, 11-45T
Number Of Gears: 22
Chain: KMC xGlide
Rims: ACID EX25, 32H, Disc, Tubeless Ready
Front Hub: ACID PL-8, 32H, QR, Centerlock
Rear Hub: Shimano FH-TC500-HM, 12mm Through Axle, Centerlock
Tyres: Schwalbe Marathon Mondial, 47-622
Pedals: ACID PP Trekking
Saddle: ACID Sequence Pro 170
Seatpost: CUBE Performance Post, 27.2mm
Rear Light: ACID Mudguard Rear Light PRO-D, 6V, AC
Kickstand: ACID FM Pure Kickstand
Mudguards: ACID 56 Integrated Carrier 3.0
Bell: Reich Cycle Bells Ringsound
Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
Max System Weight: 140Kg
Max Rider Weight: 100Kg
From zipping across town to tackling mountain passes you've never ridden before, the Kathmandu EXC from CUBE is designed to get you there – and back – in comfort and style. We chose Shimano's Cues 2x11 gears for their ease of use and reliability. Then we added powerful Shimano hydraulic disc brakes and Schwalbe's 47mm Marathon Mondial tyres, so you know you're in full control at all times. Finally, we selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces. With our Integrated Carrier 3.0 and a full complement of accessories – including mudguards, kickstand and lights – you've everything you need. Just jump on and go. CUBE design expertise is the name of the game for the Kathmandu's Trapeze frame. Its Integrated Carrier 3.0 is designed to work seamlessly with our ACID mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru-axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to complement the frame's clean lines, we reckon we've thought of everything. Just don't forget your toothbrush.
