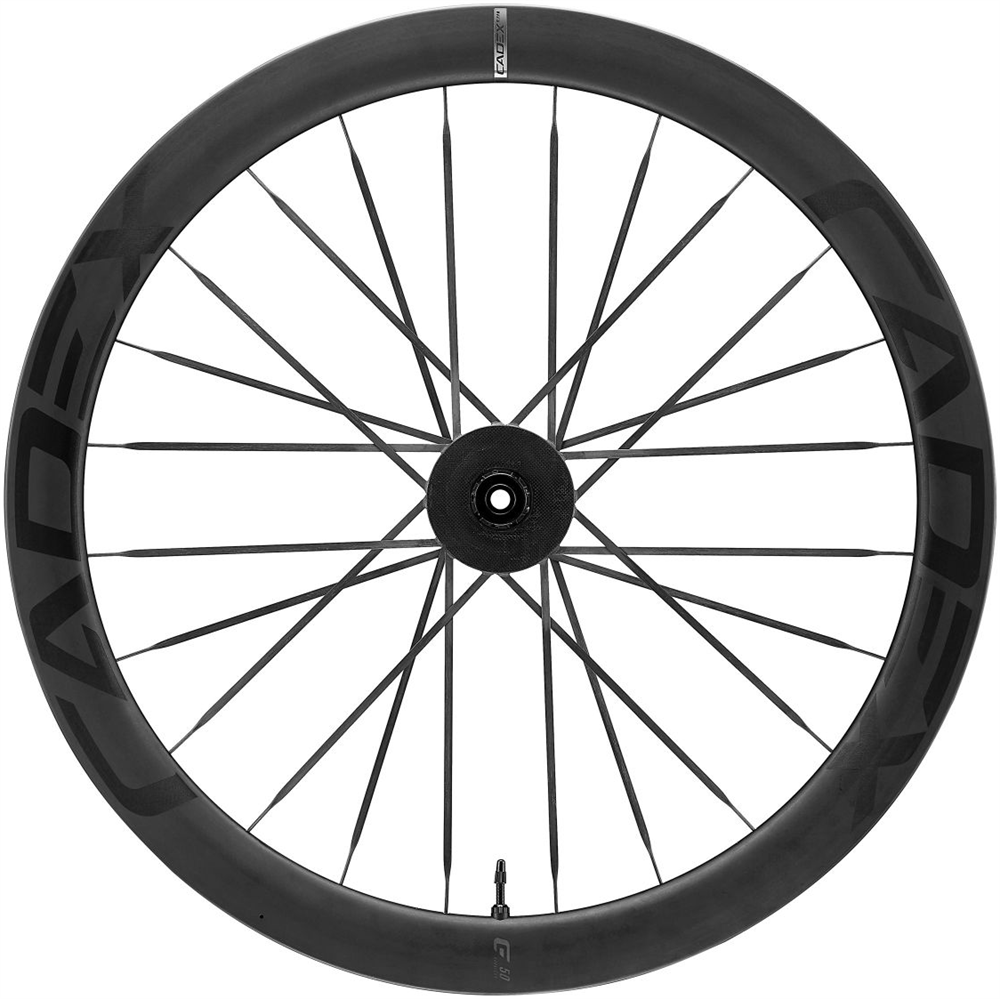

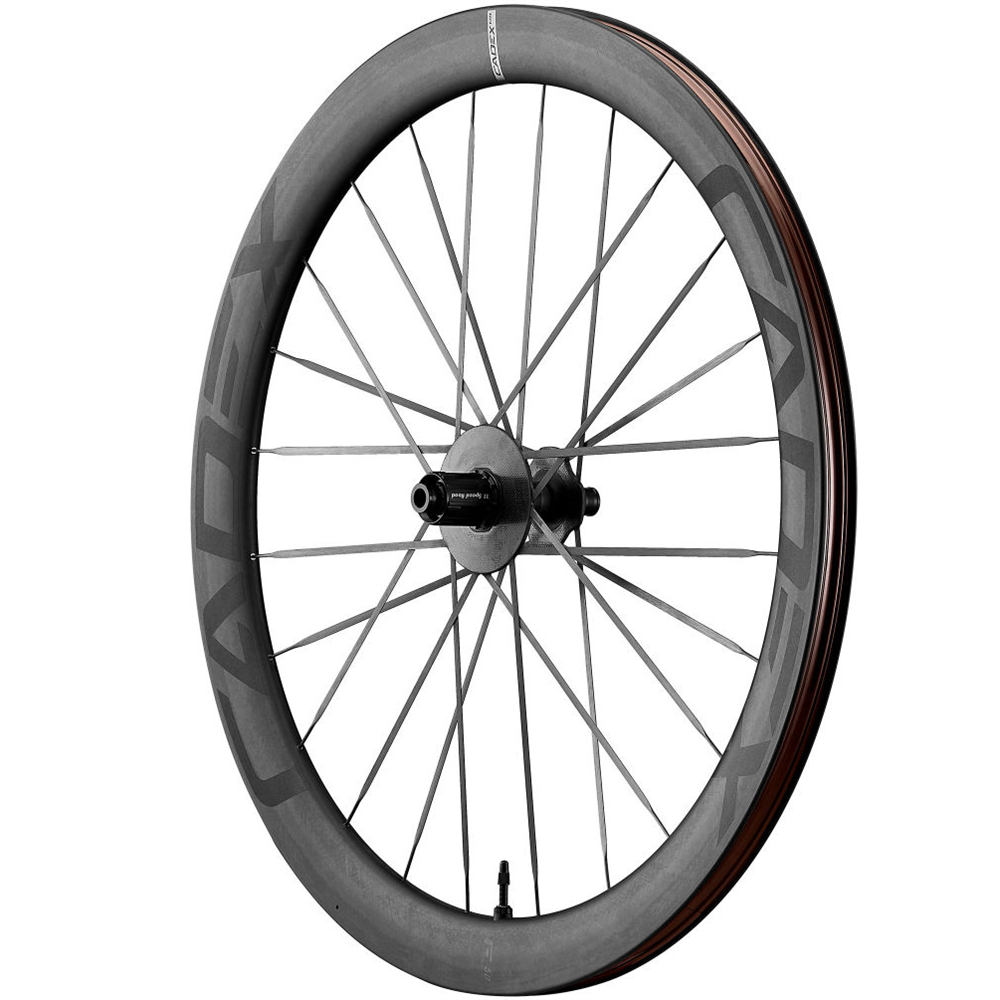

Max 50 Disc Brake Road Bike Rear Wheel
- Spread the cost over 6, 12, 24 or 36 months
- 0% APR Finance available on 6, 12, 24 months for orders over £250
- 0% APR Finance available on 36 months for orders over £1500
- Pay as little as 10% deposit
The Max 50 WheelSystem delivers refined race-day performance throughan ultralight, super-stiff aero system.
At 1290g, its Max integrated hub,Super Aero carbon spokes and Dynamic Balanced Lacing optimizeefficiency and power transfer for sharp acceleration and confident control.
Features:
- 50mm Aero Rim Profile: A deep 50mm rim profile maximizes aerodynamic efficiency,reducing drag for sustained high-speed performance in race conditions.
- Integrated Max Hub And Spoke Technology: A one-piece hub, flange, spoke, and rimstructure forms a fully integrated system that minimizes drag, smooths airflow, andmaximizes real-world efficiency at speed.
- Precision Reinforced Carbon Layup: High-tensile fibers are strategically placed onlywhere needed to create a strong, torsionally stiff structure while minimizing overallweight.
- CADEX Super Aero Carbon Spokes: High-tensile integrated carbon spokes with hiddennipples and independent internal tensioning minimize lateral flex for efficient accelerationand responsive climbing.
- Dynamic Balanced Lacing (DBL): A wider bracing angle and balanced spoke tensionunder pedaling load result in a stiffer wheel with outstanding power transfer andhandling precision.
- 22.4mm Inner Width: A wide 22.4mm internal rim creates a more efficient tire profilewith an increased contact patch, improving sidewall support and confident handling atspeed.
- CADEX R3-C48 Aero Hub: An aerodynamic hub design with a 48-tooth ratchet deliversfast, direct engagement for immediate power transfer during accelerations and surges.
- Ratchet Wave Spring System: A wave spring design ensures consistent, balancedratchet engagement, resulting in smoother operation and improved rolling efficiency.
- CADEX Hookless Rim Technology: An optimized carbon layup and hookless rim designreduce weight while improving durability and tire stability under high-speed loads.
- In-Mold Carbon Graphics: CADEX logos are integrated directly into the carbon surfacefor a clean, premium finish with no decals, no added weight, and no risk of fading.
Specifications
Rim Material: Carbon
Rim Type: Hookless
Tubeless: CADEX Tubeless System (rim tape and valves included)
Suggested Tyre Size: 700 x 25C – 700 x 32C
Rim Height: 50mm
Rim Outer Width: 30mmRim Inner Width 22.4mm
ETRTO: 622-22
Front Hub: CADEX R3 , Centerlock, One-piece integrated hub and spokes
Rear Hub: CADEX R3-C48, Ratchet Driver, Centerlock, One-piece integrated hub and spokes
Bearing: Ceramic
Front Axle: 100x12 Thru Axle
Rear Axle: 142x12 Thru Axle
Spokes (Front): Super Aero Carbon Spoke
Lacing (Front): DBL, 16H
Spokes (Rear): Super Aero carbon
Lacing (Rear): DBL, 24H
Nipple: Integrated titanium
Warranty: 2 years incident / 5 years warranty
Weight without Valve and Tape: (Pair) 1250g
Weight with Valve and Tape: (Pair) 1290g
Hub Compatibility: Shimano / SRAM XDR / Campagnolo N3W
