Bosch

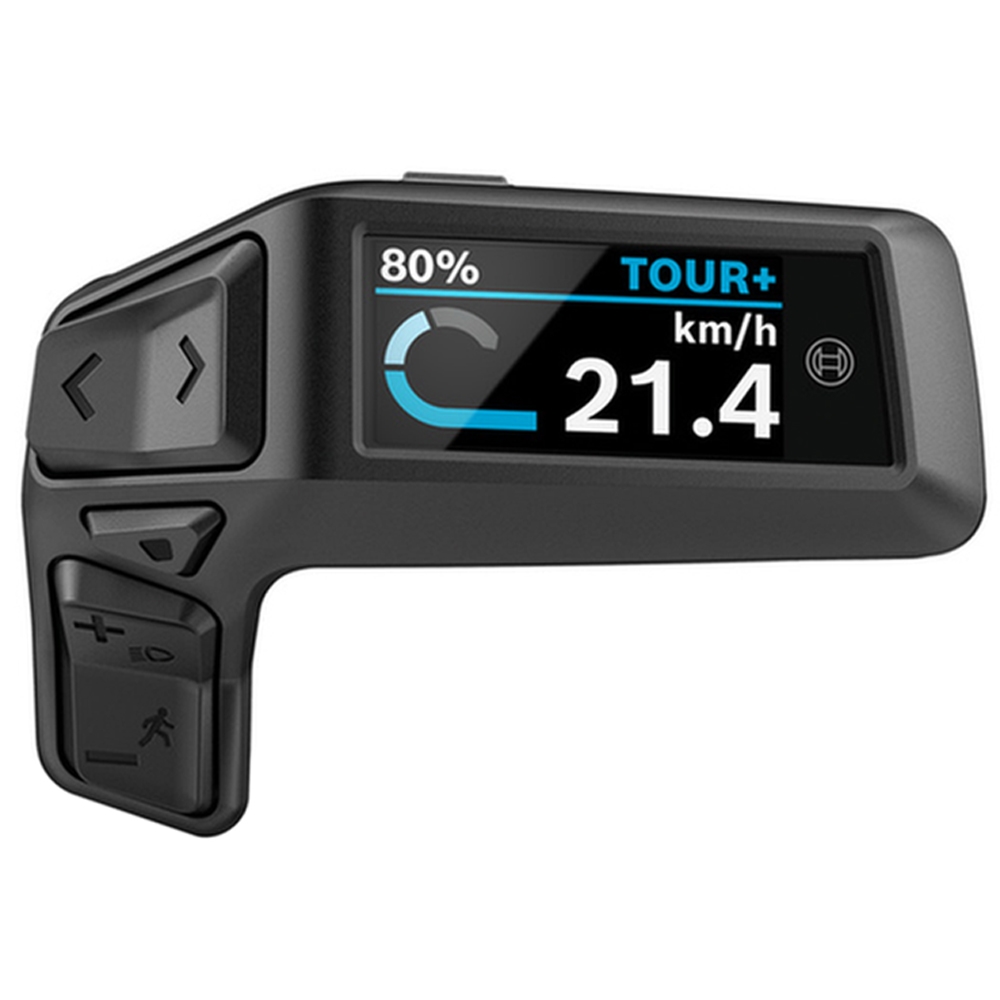

Purion 200 E-Bike Control Unit - 22.2 mm

All-in-one: display and control unit for eBike in a single device

• 1.6-inch TFT display (320 x 160 pixels)
• "L-shape" for best readability and also optimal, ergonomic accessibility of buttons
• Long-life and replaceable Li-ion battery with 75 mAh, which is charged via the eBike battery
• System plug for connecting the eBike system
• Diagnostic interface (type: USB-C) for diagnostics or as an alternative charging option for the integrated battery of the Purion 200
• The interface is NOT suitable for charging the smartphone!

Scope of delivery

• 1x Purion 200, suitable for 22.2 mm handlebar diameter
• 1x Rubber shim for clamp and battery
• 1x Captively mounted clamping screw
• 1x Operating and assembly instructions

System: The smart system

Model year: MY2024

Important:

*To convert to the Purion 200, a configuration with the DiagnosticTool is required*
